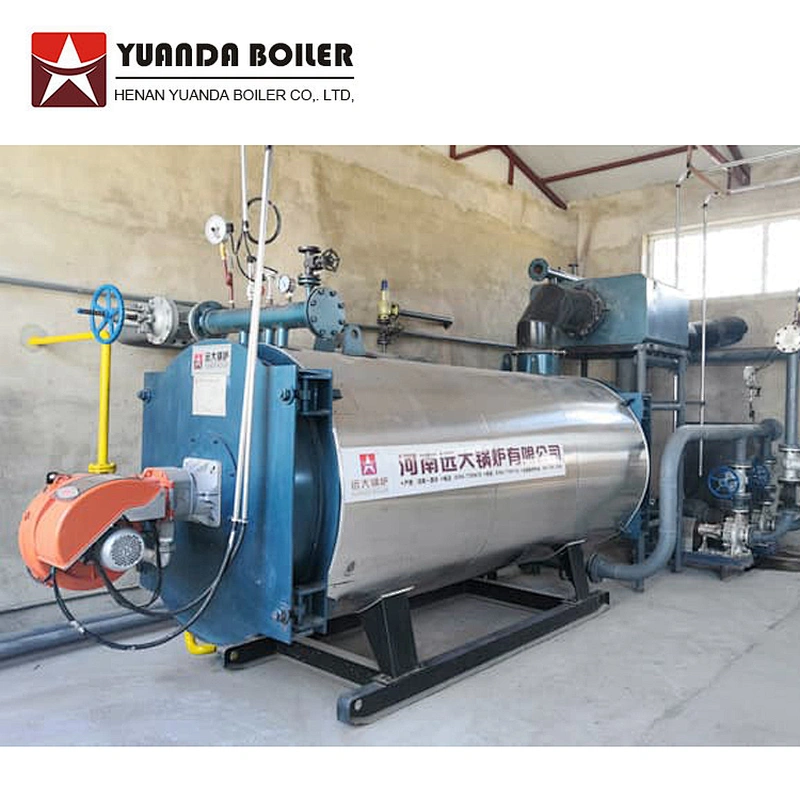

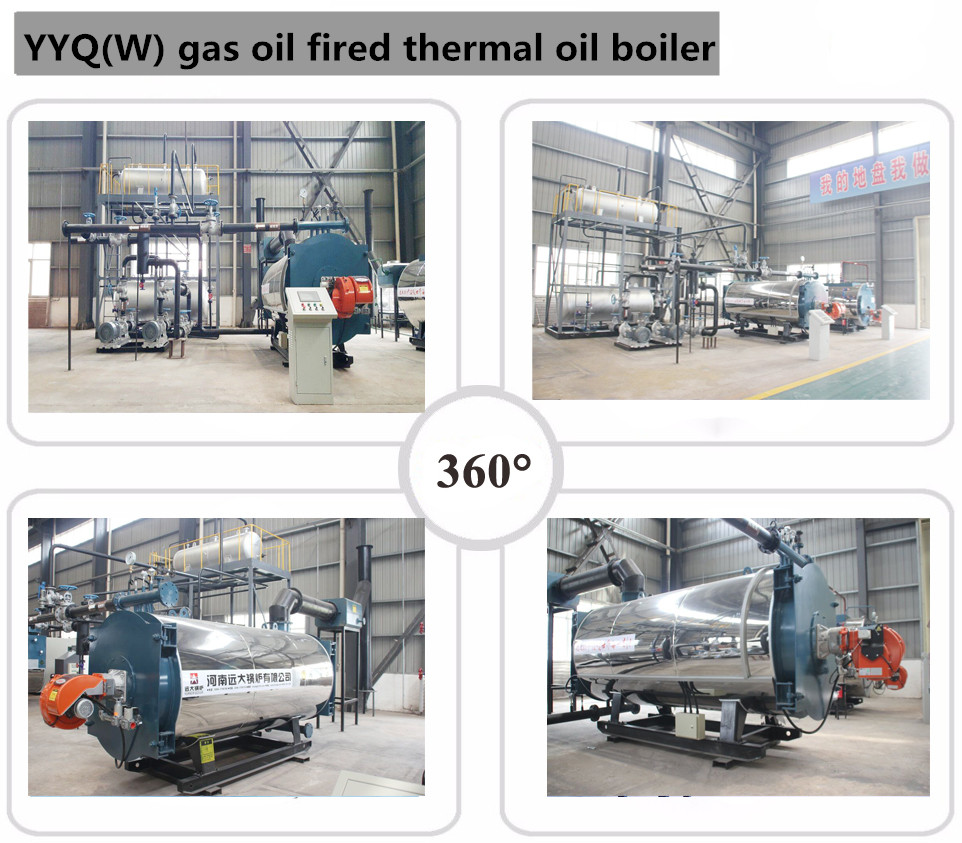

YY (Q) W series thermal oil boileris a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
| Model | YY(Q)W- 350Y(Q) | YY(Q)W- 700Y(Q) | YY(Q)W- 1400Y(Q) | YY(Q)W- 2100Y(Q) | YY(Q)W-3000Y(Q) | YY(Q)W- 3500Y(Q) | YY(Q)W- 4200Y(Q) | YY(Q)W-5600Y(Q) | YY(Q)W-7000Y(Q) | ||
| Capacity | KW | 350 | 700 | 1400 | 2100 | 3000 | 3500 | 4200 | 5600 | 7000 | |
| Rated working pressure | Mpa | 0.8 | |||||||||
| Heat carrier output/inlet temperature | ℃ | 280/250; 320/290 | |||||||||
Design thermal effiency | % | >96 | |||||||||
Fuel con sump. | Natural gas | Nm3/h | 42.13 | 84.26 | 169.11 | 259.6 | 369.57 | 431.92 | 516.38 | 676.5 | 830.73 |
| Diesel | kg/h | 34.5 | 69.1 | 138.78 | 212.52 | 302.39 | 353.31 | 422.57 | 560.24 | 673.82 | |
| Size | Meter | 3000 *1000 *2000 | 3200 *1300 *2050 | 3710 *1524 *2150 | 5600 *2400 *3170 | 5600 *2400 *3170 | 5900 *2382 *3560 | 6630 *3200 *3050 | 7200 *3550 *3920 | 8090 *3675 *4000 | |
| Weight | Ton | 2.0 | 3.0 | 4.0 | 6 | 10 | 10.2 | 16.5 | 23.6 | 28 | |

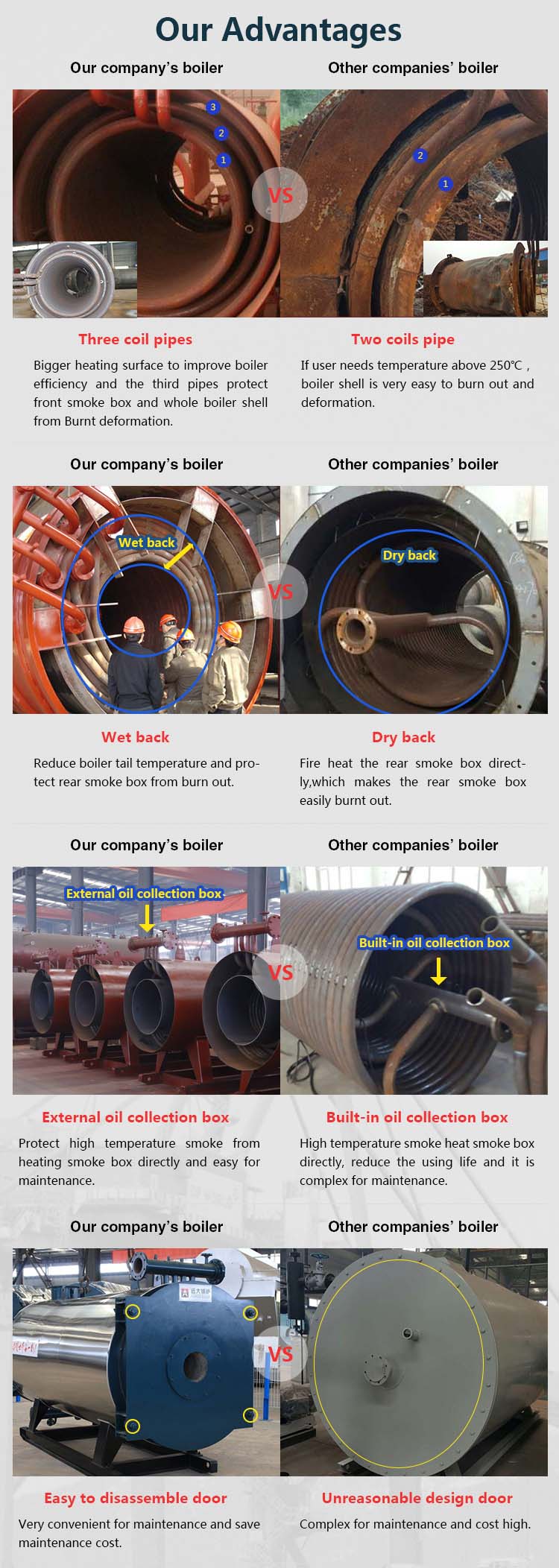

For buying a boiler, customers cares most is boiler's quality,energy consumption and boiler maintanance, our boiler sloves these easily.

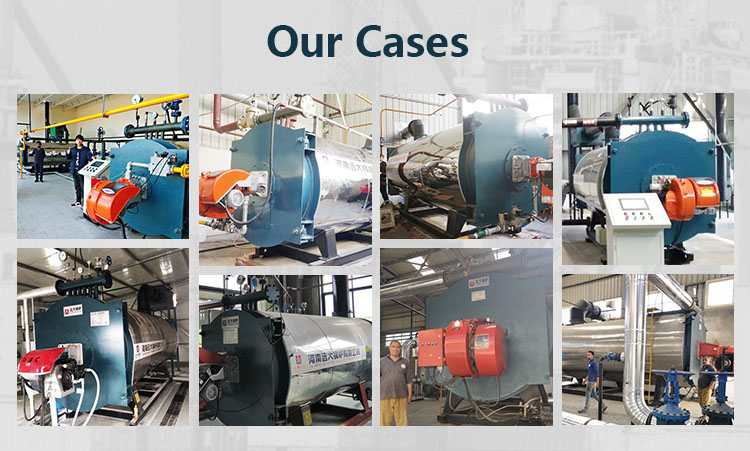

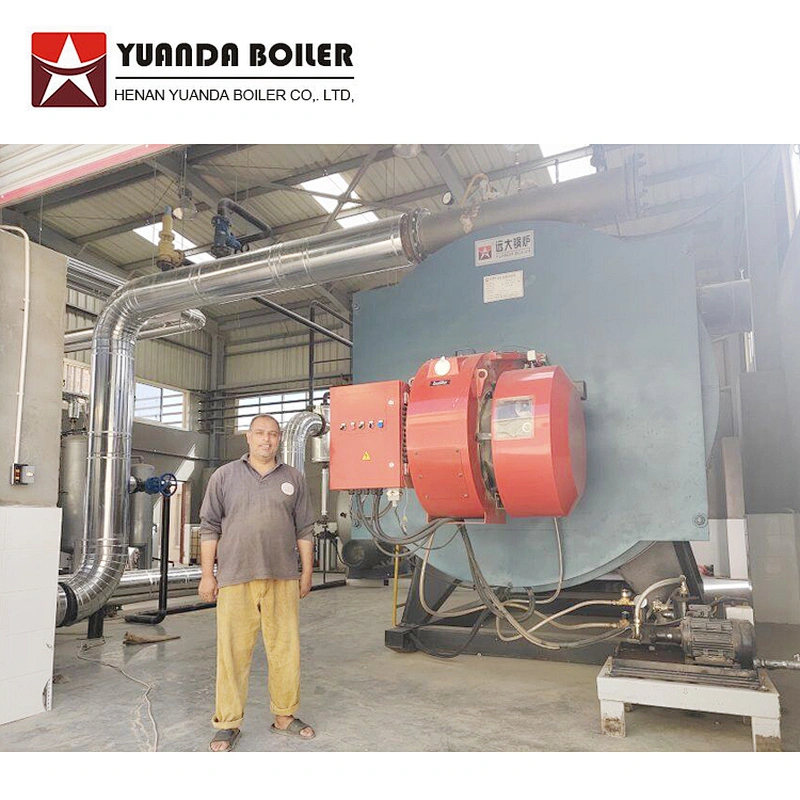

For our thermal oil boiler's good quality and our company's good after sales service, we have hundreds of projects
all around the world. They are mainly used in plywood factory,bitumen(asphalt) factory, textile factory, refinery
factory,food factory,etc.

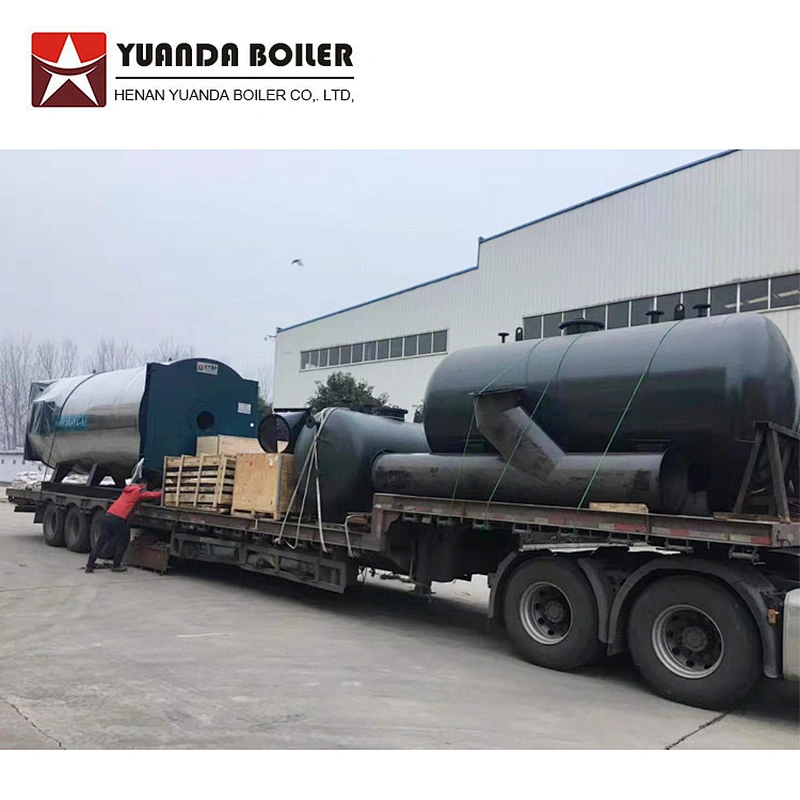

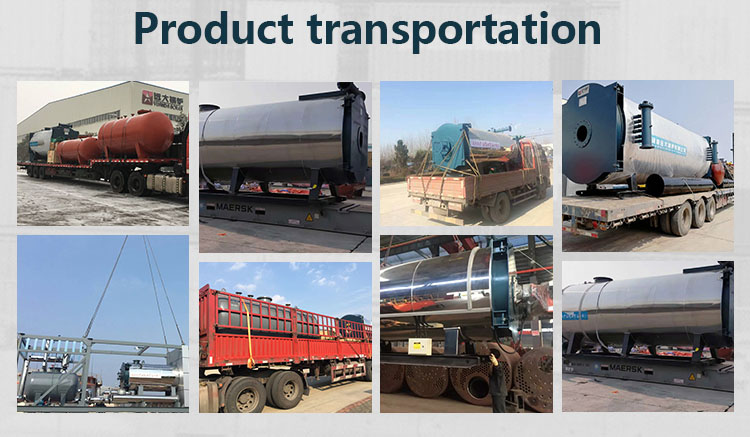

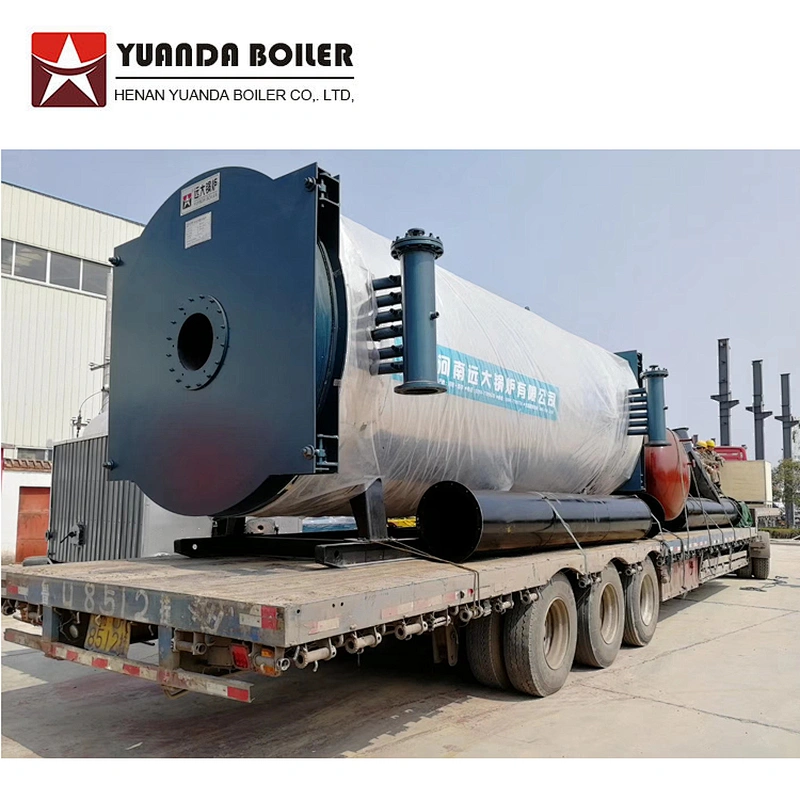

1. Way of delivery: by Sea or Railway or truck based on needs
2. Shipping model: by normal container and flat rack or bulk cargo based on differnent capacity. We have stable and experienced cooperate shipping company, and we will suggest suitable container.
3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods.
4. Packing: nude for boiler main part in nude, accessories in export-use wooden box.
5. Payment Terms: T/T, LC; 30% deposits; 70% balance before delivery.
We are professional manufacturer and supplier for industrial boilers, with more than 60 years' experience in boiler design, production, installation and commissioning. Our company is one of the enterprises which obtained boiler manufacturing license in China.We have our own R & D team and cooperate with famous high-tech research institutes at the same time, which ensures our products in the forefront of technology and science.
By the end of 2018, we have exports to 86 countries worldwide and have successfully supplied tailor made solutions for over 100,000 customers.
Our main products are:
(1)WNS Gas oil fired steam boiler and hot water boiler
(2) DZL / DZH Coal / wood fired steam boiler and hot water boiler
(3) SZL Biomass fired steam boiler and hot water boiler
(4) YY(Q)W Gas oil fired thermal oil boiler
(5) YLW Coal biomass fired thermal oil boiler
(6) All kinds of pressure vessels
Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
