1. Rated capacity: thermal power 0.7mw 1.4mw 2.8mw 4.2mw 5.6mw 7mw 10.5mw 14mw 21mw 29mw etc.
2. Rated hot water temperature :85°C, 95°C or 115 °C
3. Fuel: coal,biomass,wood chips,solid fuel,etc

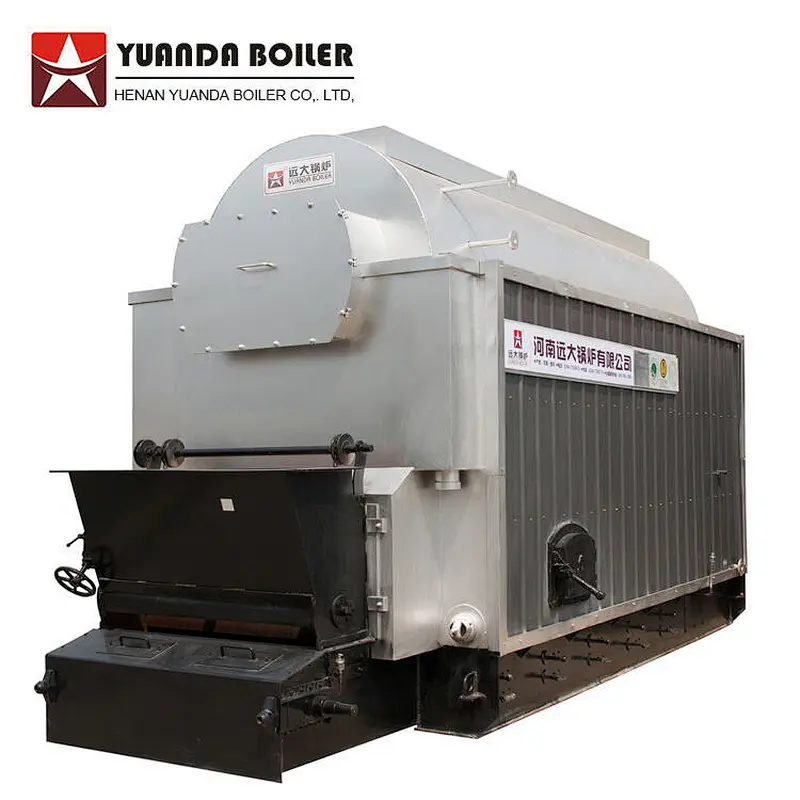

4. Model:DZL
5. Application field: greenhouse, house/apartment, hotel, school, large and medium-sized enterprise and company, factory, apartment and so on use it for heating,bathing and shower.
| Parameters | Unit | DZL0.7 | DZL1.4 | DZL2.8 | DZL4.2 | DZL5.6 | DZL7.0 | DZL10.5 | DZL14 |
| Rated thermal power | MW | 0.7 | 1.4 | 2.8 | 4.2 | 5.6 | 7.0 | 10.5 | 14 |
| Rated working pressure | Mpa | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Rated output water temperature | ℃ | 95/115 | |||||||
| Rated return water temperature | ℃ | 70 | |||||||
| Thermal efficiency | % | >80 | |||||||
| Fuel type | coal,biomass pellet,firewood,rice husk,palm shell,etc | ||||||||
| Fuel consumption | kg/h | 181 | 370 | 727 | 1080 | 1390 | 1726 | 2530 | 3390 |
| Exhaust gas temperature | ℃ | <130 | |||||||
| Max transporation size | mm | 4410*2000 *2710 | 5750*2600 *3186 | 7070*2800 *3470 | 7300*3350 *3600 | 7350*3500 *3600 | 7600*3500 *3600 | 8350*3600 *3650 | 8900*3600 *3670 |
| Max transporation weight | t | 10.0 | 22.5 | 26.5 | 35.7 | 40.3 | 25.6 | 18 | 19.9 |

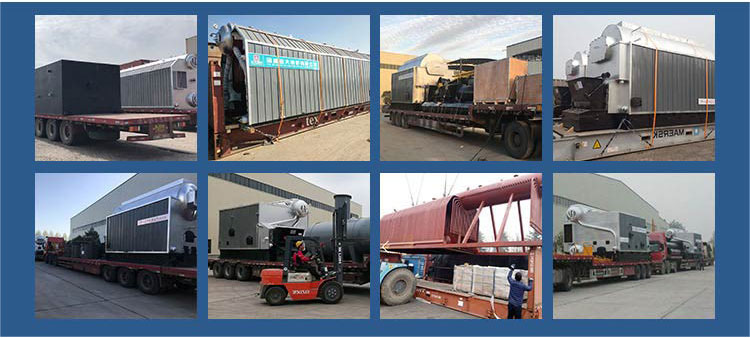

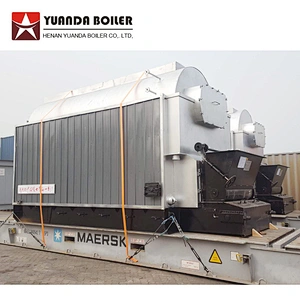

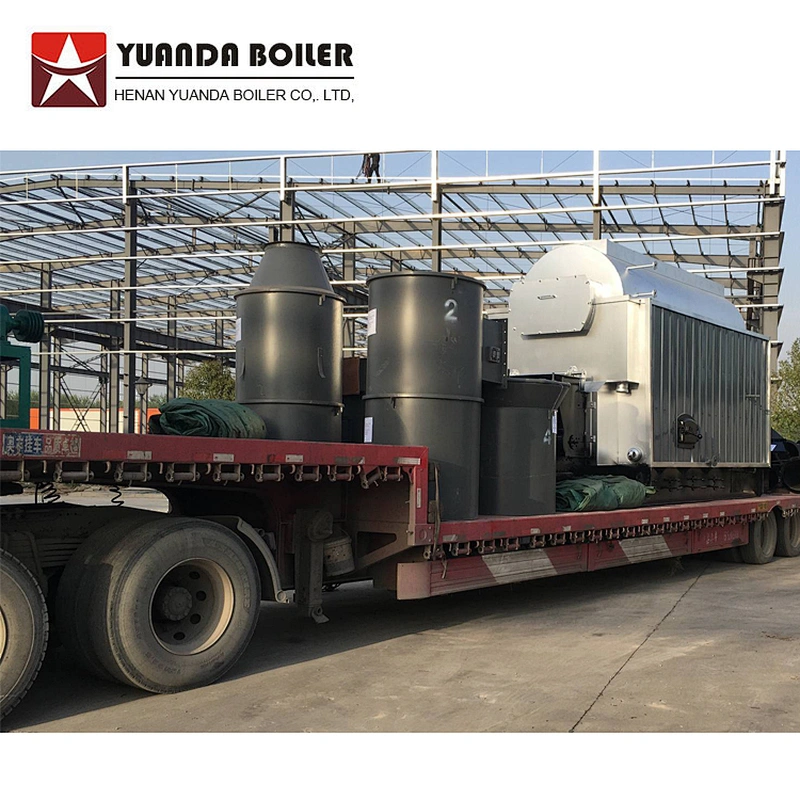

1. Nude packaging for boiler mian part and wood box packaging for boiler accessories.

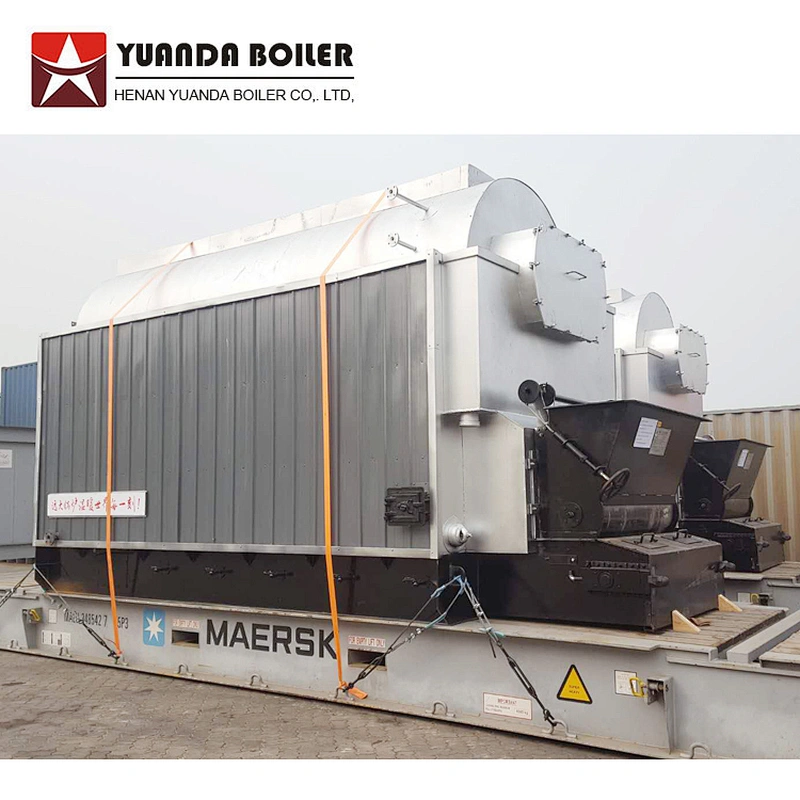

2.Normally we use 20 container, 40container or 20 flat rack container and 40 flat rack container to load it.
3.All goods will be reforced after packing into containers.
4. We have stable shipping company to cooperate. They will confirm the safty of the goods.
5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.
Henan Yuanda Boiler Co., Ltd,established in 1956. Locates in Xihua County of Henan Province, is one of the enterprises which firstly obtained boiler manufacturing license in China from 1983. We have A-Class license for boiler manufacturing, D-Class license for pressure vessels, and certifications for boiler installation, commissioning and maintenance. We are a high-tech enterprise integrating manufacturing, designing, engineering and servicing gas, oil, coal,biomass,wood and solid waste fired steam,hot water and thermal fluid(hot oil) boilers.
Our company participated in the drafting of national boiler standards, and has more than 60 patents, passed ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001: 2007 Occupational Health And Safety Management System Certification.
For more than 60 years, our company focus on R&D and production of high efficiency, energy saving and environmental protection boilers.Our products are well-known in domestic markets and were exported to 86 countries and regions. With installations of more than 100,000 projects across all industries worldwide, Yuanda Boiler is recognized for the high code standards, innovative engineering and design, Energy Star rating, and renewable, sustainable solutions and operational efficiency.
Our company keep the business philosophy of"Quality Oriented, Sincerity Promoted"to create greater value for customers and make greater contributions to the society.
Company Target : Be Century-old Enterprise, Create International Brand!
