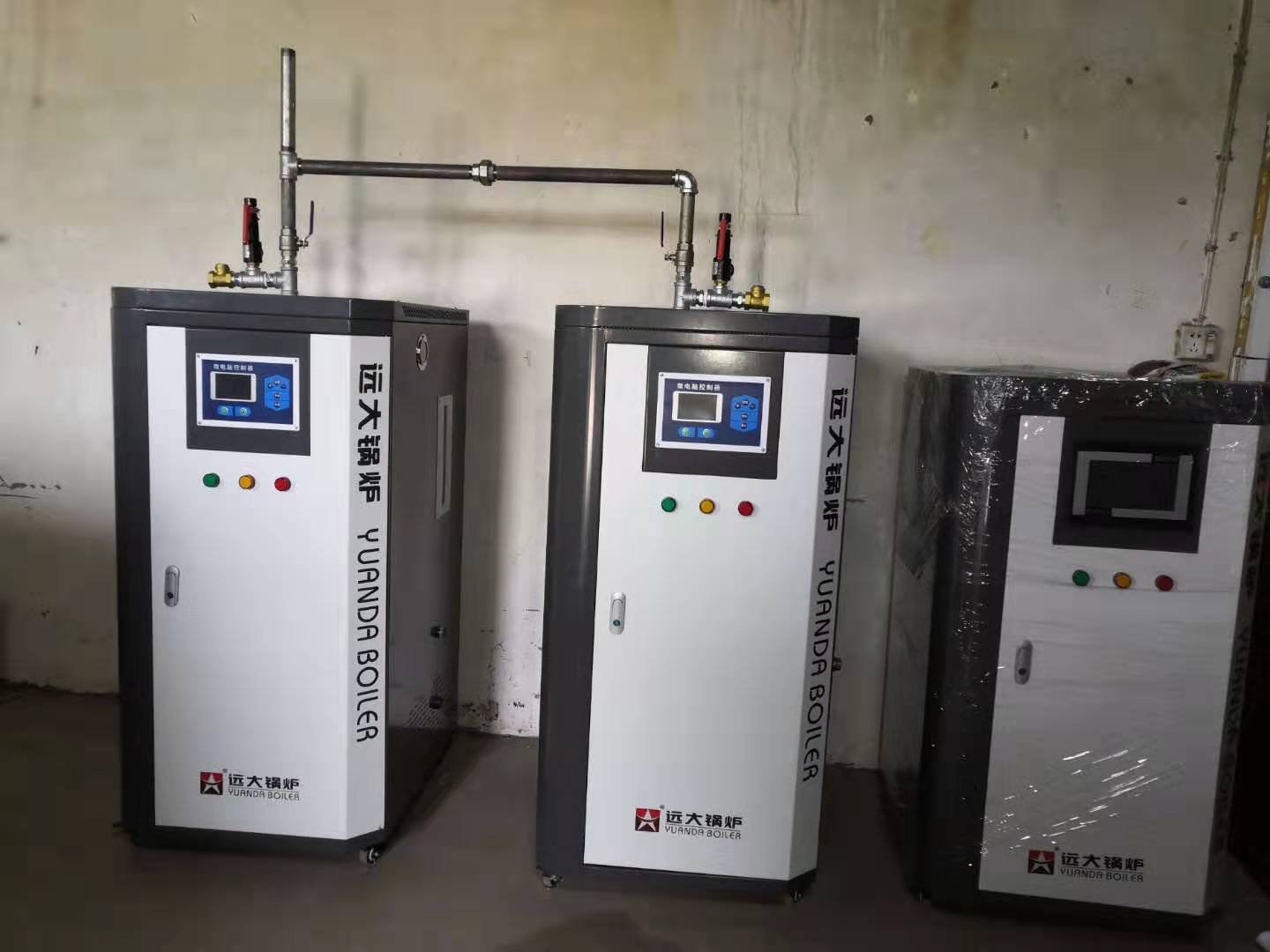

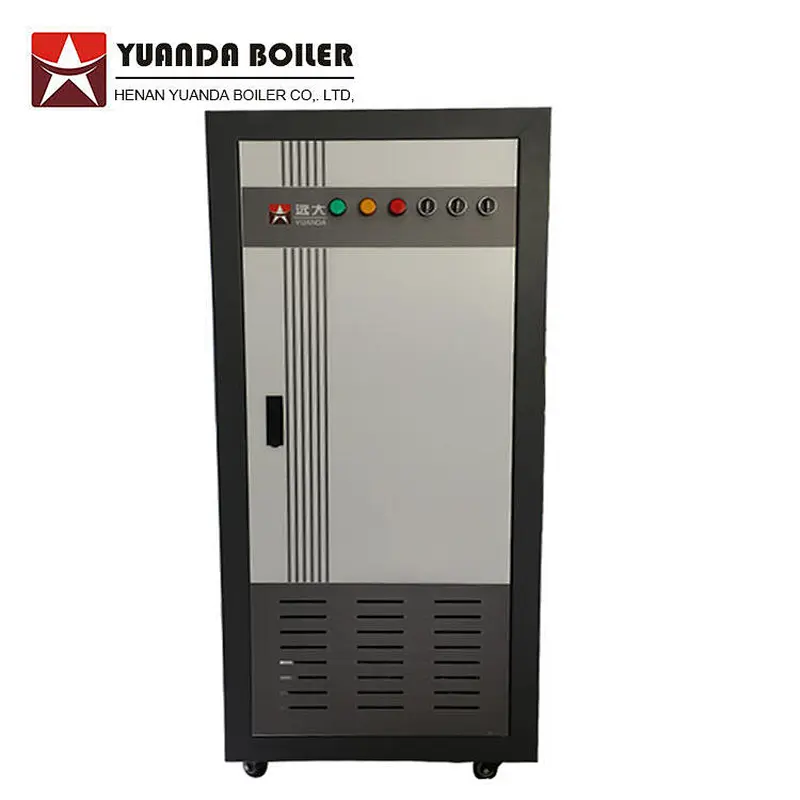

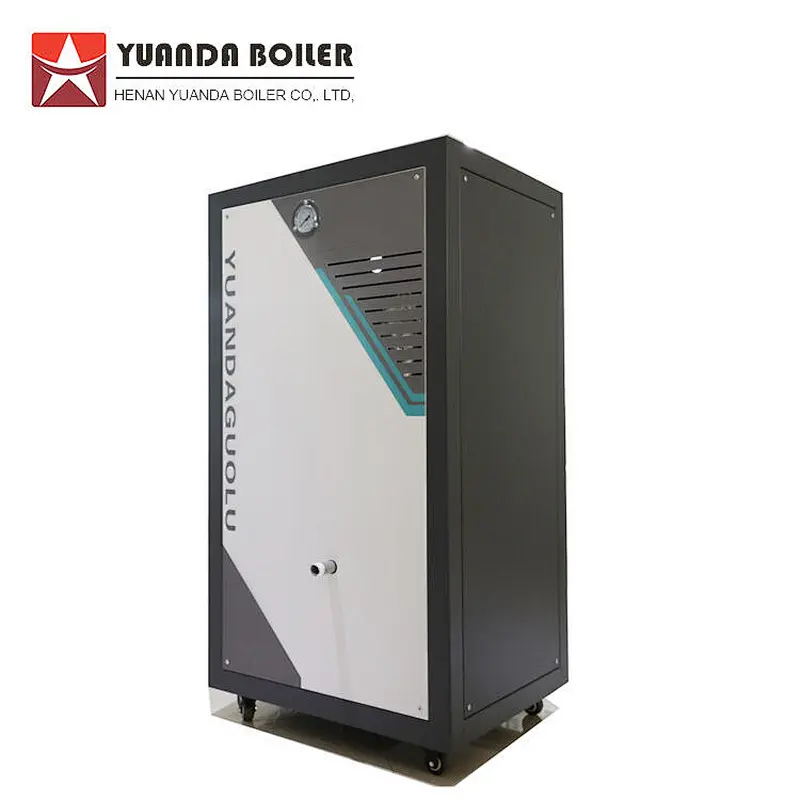

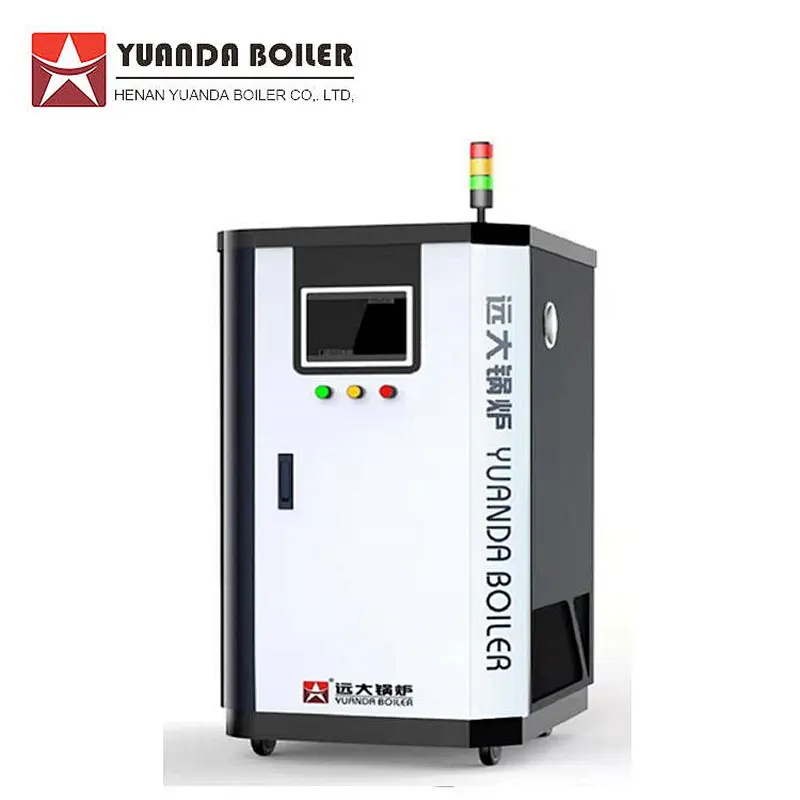

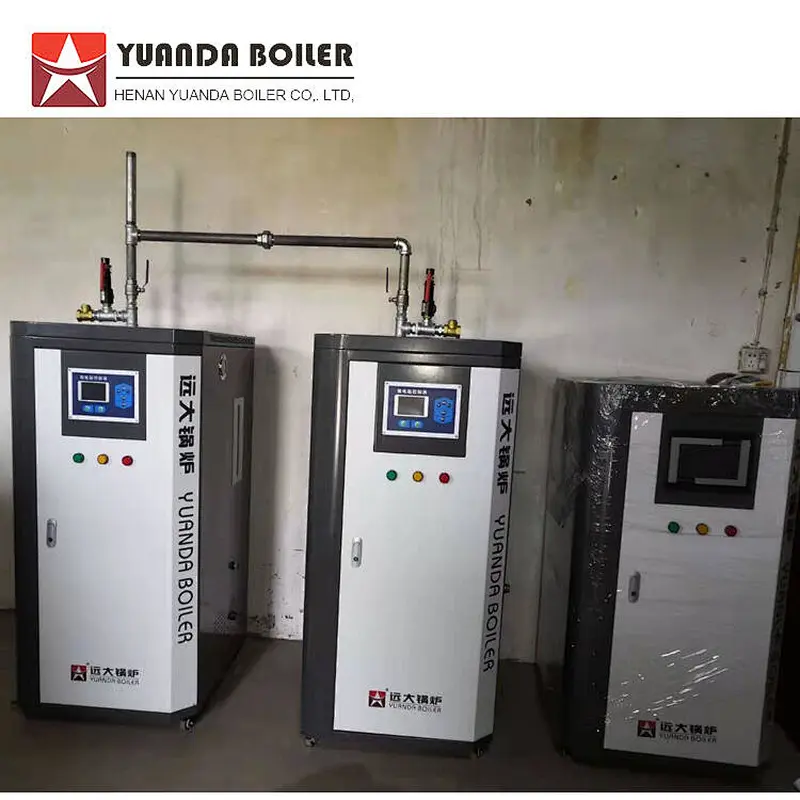

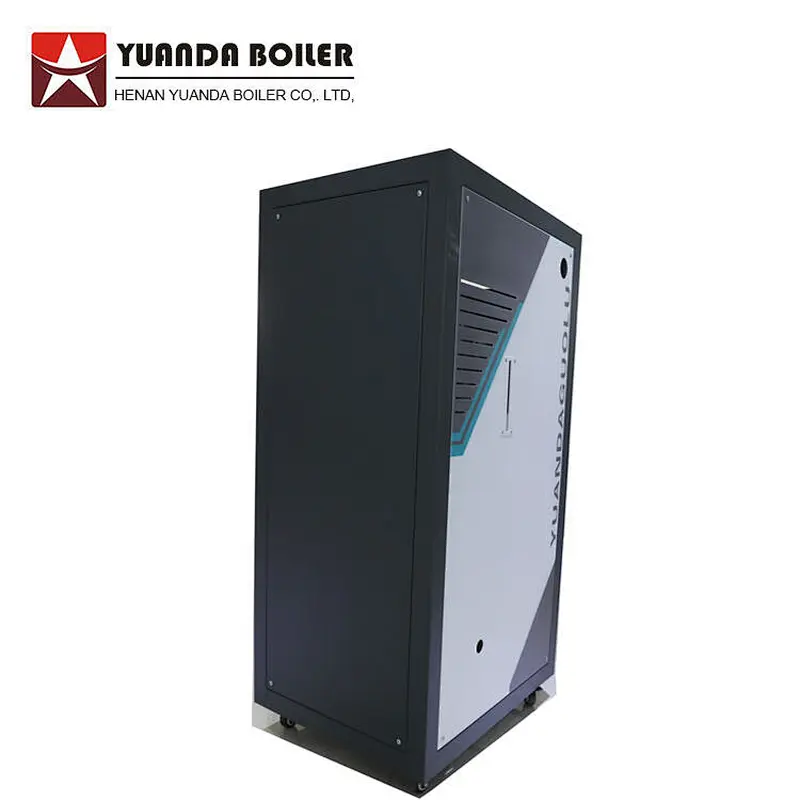

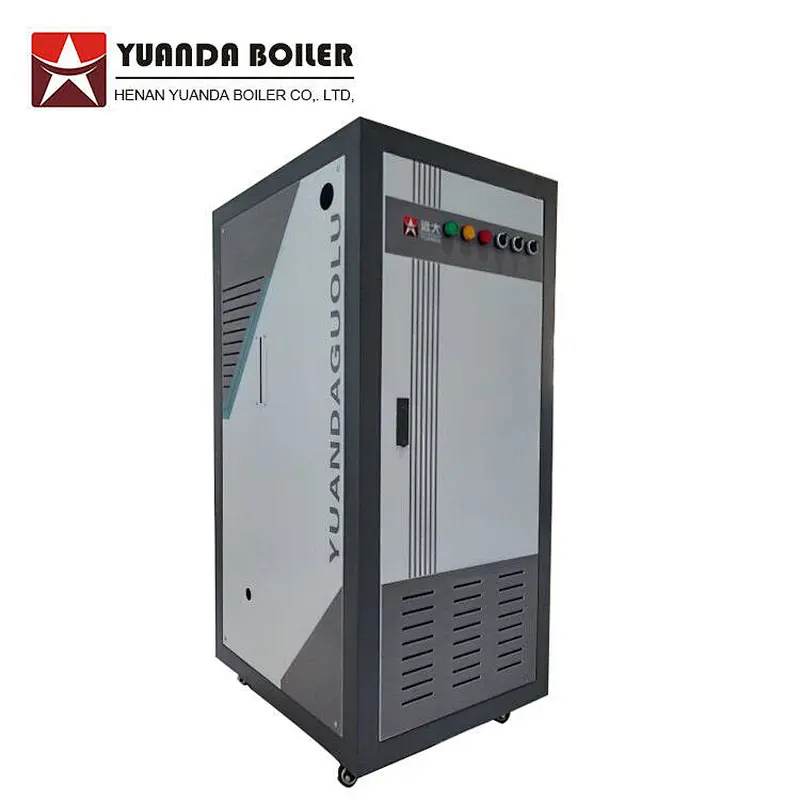

LDR vertical small electric steam generator

LDR vertical small electric steam generator

Model NO.: LDR vertical small electric steam generator

Quantity:

Product Description

Product features:

1.Pressure control system
Imported pressure controller circuit, high design stability, high accuracy of red flag pressure gauge, accurate display
2. Thicken stainless steel casing
304 thicken stainless steel shell, using special painting process, the shell is beautiful and durable, can be customized into food grade stainless steel
3.High temperature and high pressure water pump
The high-pressure vortex water pump of the iron body has good corrosion resistance and good passability, and the residual heat of the exhaust gas can be recovered by about 20%.
4.stainless steel heating tube
Wall thickness 1 mm, stamped and sealed, non-ordinary product welding, no leakage, no expansion and long service life
5.Brass liquid level float
Natural magnet copper level controller, anti-oxidation, anti-corrosion, prolongs service life, suitable for multi-water use
6.Stainless steel mechanical float
Stainless steel mechanical float ball has good corrosion resistance, and the ball has a threaded port, which can be replaced and repaired easily.

Product parameters:

Model		LDR0.034-0.4	LDR0.05-0.4	LDR0.065-0.4	LDR0.1-0.4	LDR0.15-0.4
Reated capacity	KG/H	34	50	65	100	150
Reated pressure	Mpa	0.4	0.4	0.4	0.4	0.4
Rated steam tempe	℃	150	150	150	150	150
Reated thermal power	KW	24	36	48	72	108
Thermal effiency	%	99.9	99.9	99.9	99.9	99.9
Water volumn	L	18	21	21	23	29
Size	MM	610×670×900	610×670×1100	610×670×1100	610×670×1200	610×670×1400
Weight	Kg	100	110	110	130	160

Our Services:

Pre-sale service:
We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is available.
3.Our engineers will held a training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.

Company Information:

Henan Yuanda Boiler Co., Ltd,established in 1956. Locates in Xihua County of Henan Province, is one of the enterprises which firstly obtained boiler manufacturing license in China from 1983. We have A-Class license for boiler manufacturing, D-Class license for pressure vessels, and certifications for boiler installation, commissioning and maintenance. We are a high-tech enterprise integrating manufacturing, designing, engineering and servicing gas, oil, coal,biomass,wood and solid waste fired steam,hot water and thermal fluid(hot oil) boilers.

Our company participated in the drafting of national boiler standards, and has more than 60 patents, passed ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001: 2007 Occupational Health And Safety Management System Certification.

For more than 60 years, our company focus on R&D and production of high efficiency, energy saving and environmental protection boilers.Our products are well-known in domestic markets and were exported to 86 countries and regions. With installations of more than 100,000 projects across all industries worldwide, Yuanda Boiler is recognized for the high code standards, innovative engineering and design, Energy Star rating, and renewable, sustainable solutions and operational efficiency.

Our company keep the business philosophy of"Quality Oriented, Sincerity Promoted"to create greater value for customers and make greater contributions to the society.

Company Target : Be Century-old Enterprise, Create International Brand!
