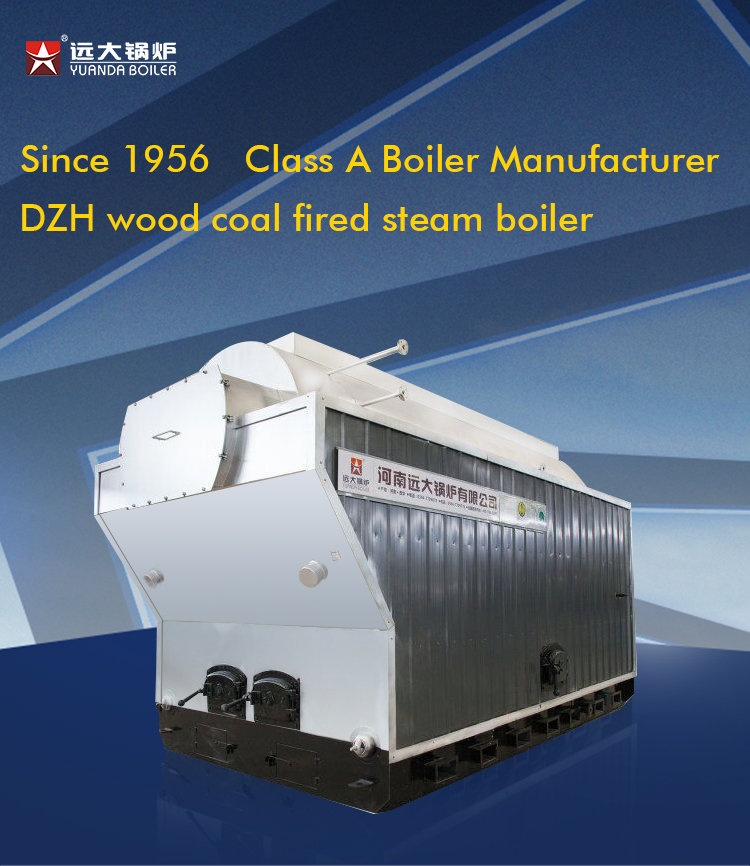

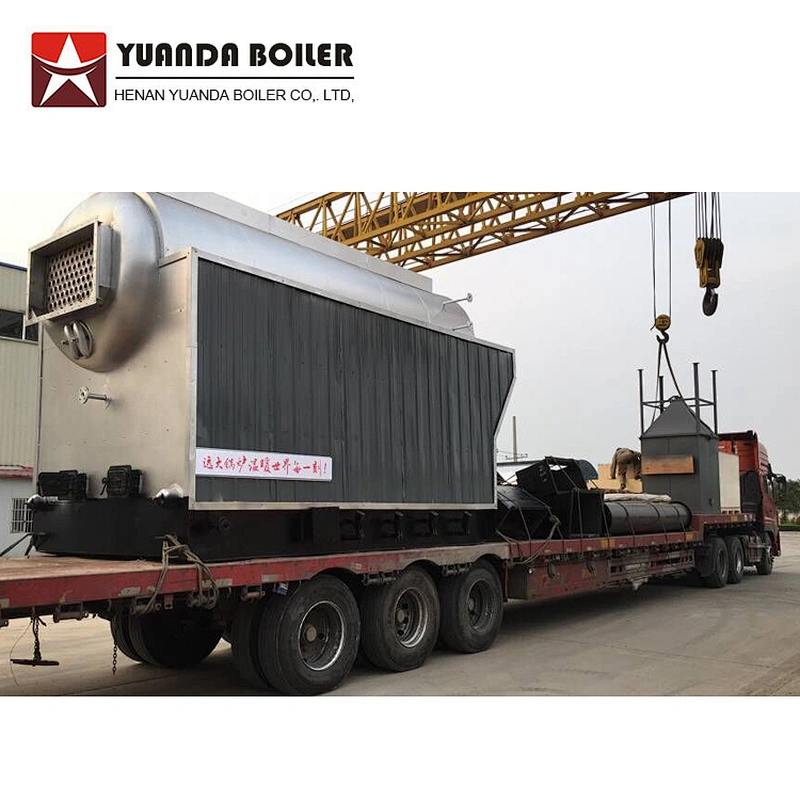

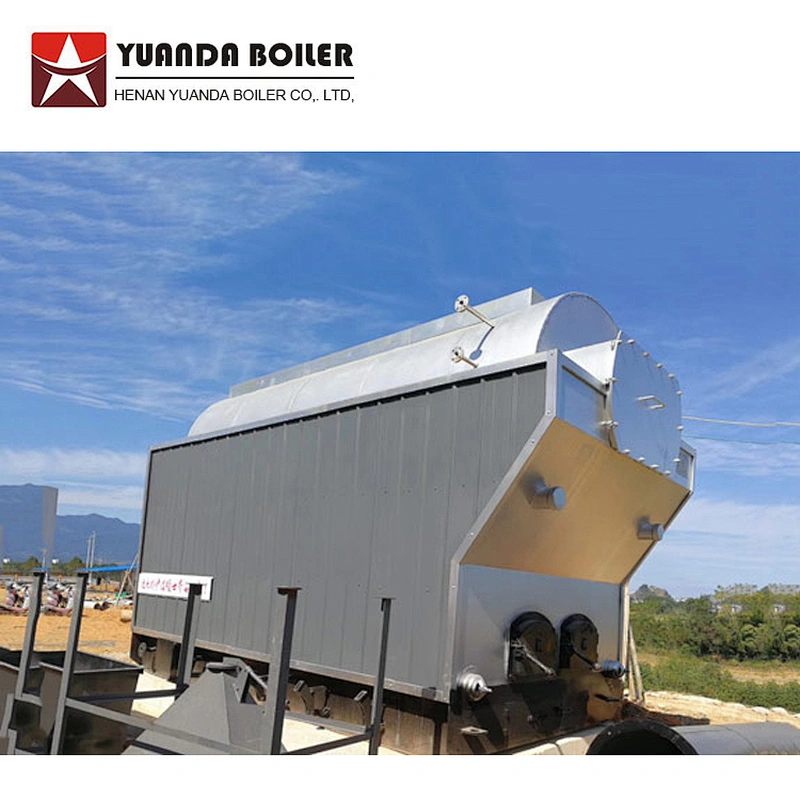

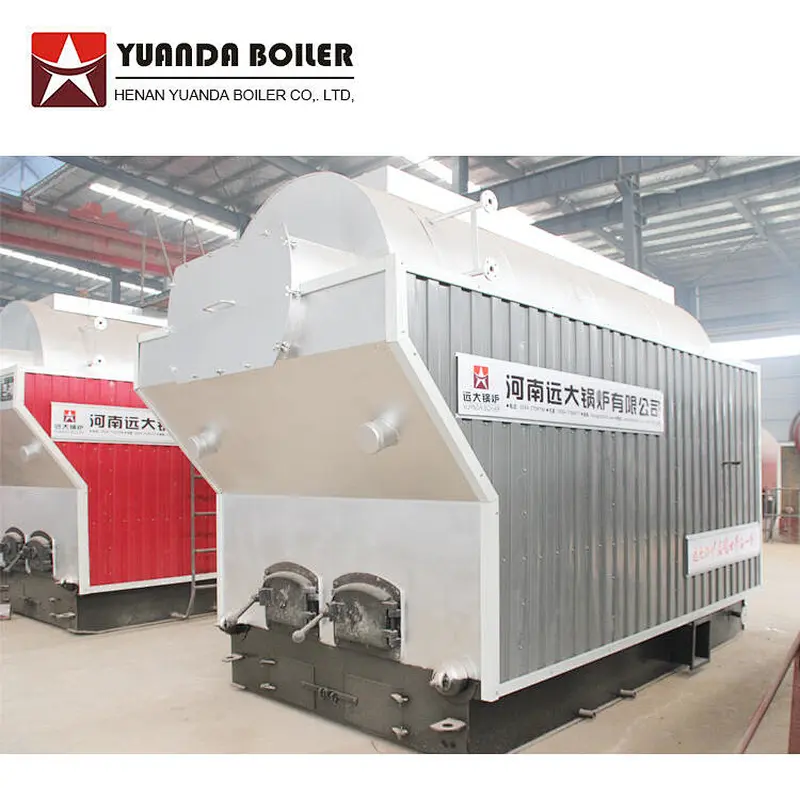

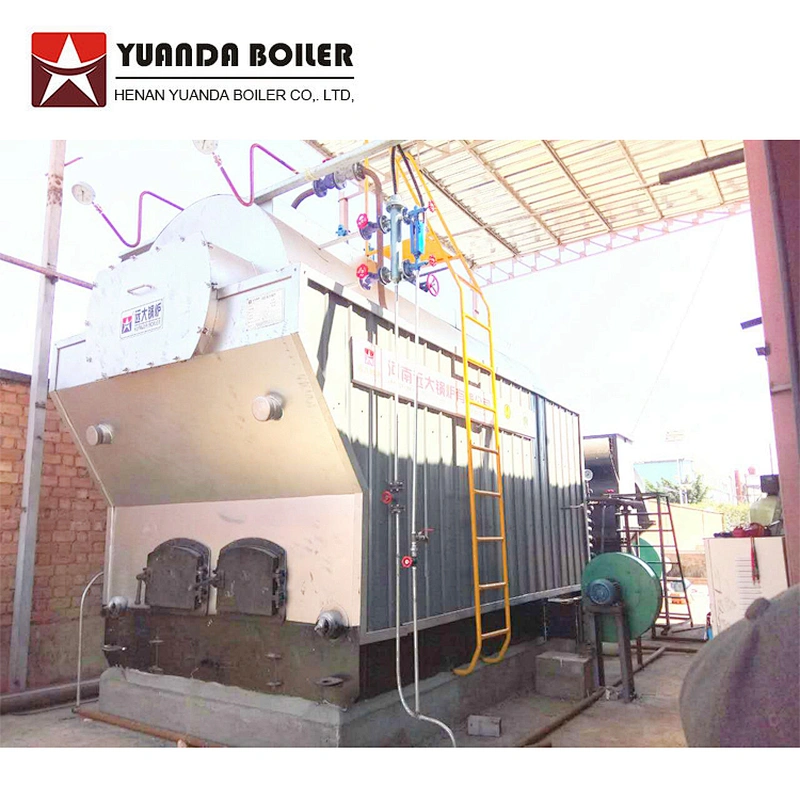

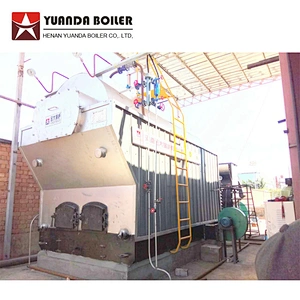

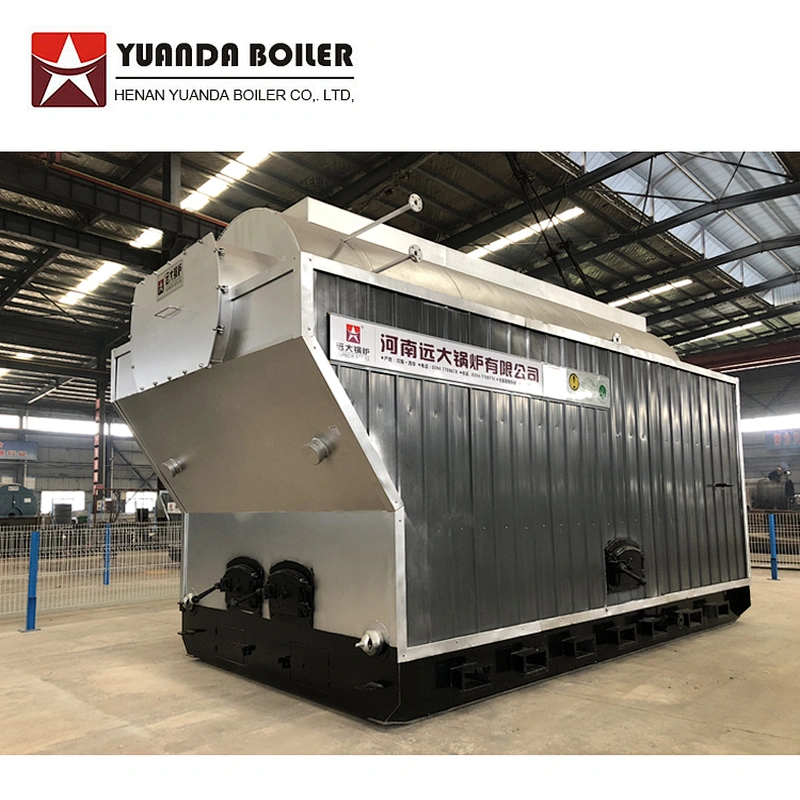

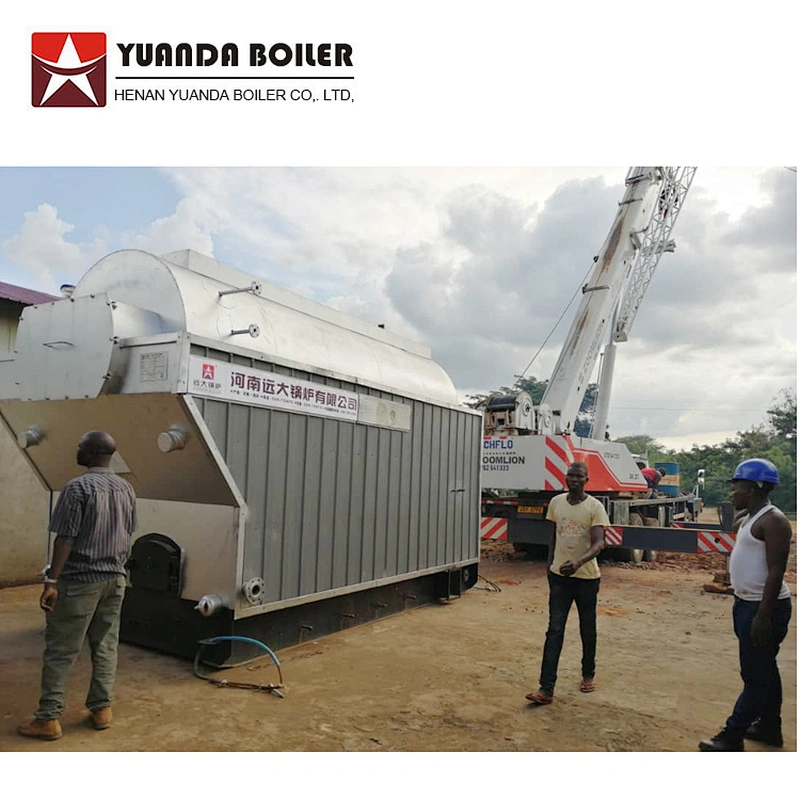

DZH 1 to 6 ton Manual feed Wood Firewood Log Fired Industrial Horizontal Steam Boiler Machine

DZH 1 to 6 ton Manual feed Wood Firewood Log Fired Industrial Horizontal Steam Boiler Machine

Model NO.: DZH manual type coal biomass steam boiler

Quantity:

Product Description

Rated capacity:1ton to 6 ton/h;

Rated pressure:0.1Mpa-3.8Mpa;

Applicable fuel:wood,firewood, wood logs,coal,solid fuel.etc

Boiler model			DZH1-1.0-T	DZH2-1.25-T	DZH4-1.25-T	DZH6-1.25-T
Rated capacity	ton/h	1	2	4	6
Rated pressure	Mpa	1.0	1.25	1.25	1.25
Rated steam temperature	℃	184	194	194	194
Active grate area	m²	2.11	3.95	5.34	9.2
Exhaust gas temperature	℃	127.2	126.4	137.3	146.8
Fuel consumption	kg/h	176	352	705	1058
Thermal efficiency	%	83.5	83.5	83	83
Weight	ton	9	15	18.5	25
Dimension	mm	432018252685	495026503177	565025503434	693030203664
Delivery mode	/	Package	Package	Package	Package
Tips	For place limited, we did not list all models, if you need other capacity or pressure, please contact us for specifics.
Tips		The parameters are for reference, we have been keeping improve our technology. If the technology is improved, please refer to the data showed on drawing.

Pre-sale service:

1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry.

2.Provide drawings for building your boiler roon,such as foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.

After-sale service:

1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
