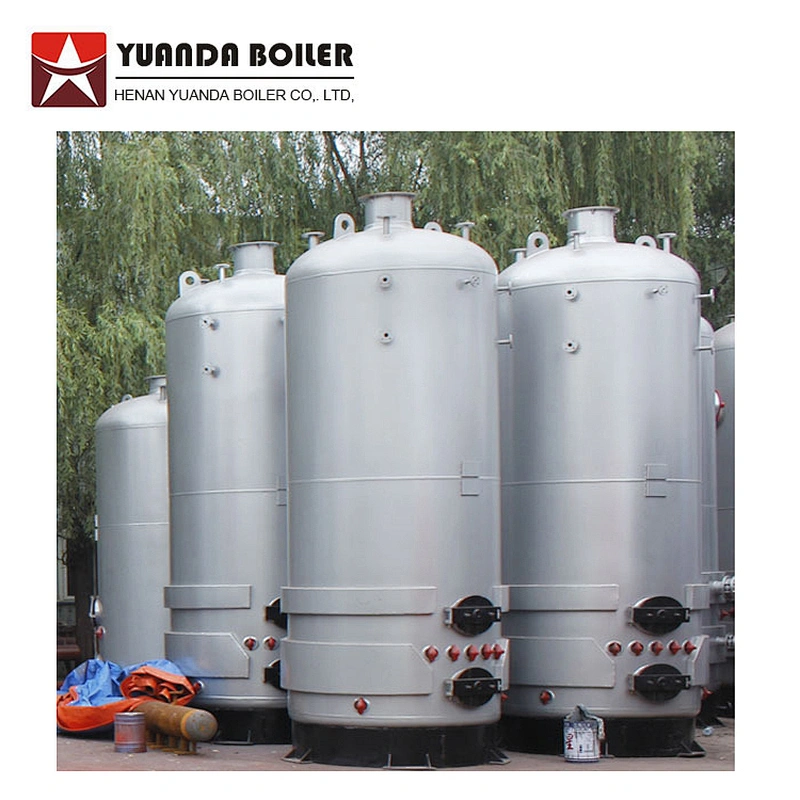

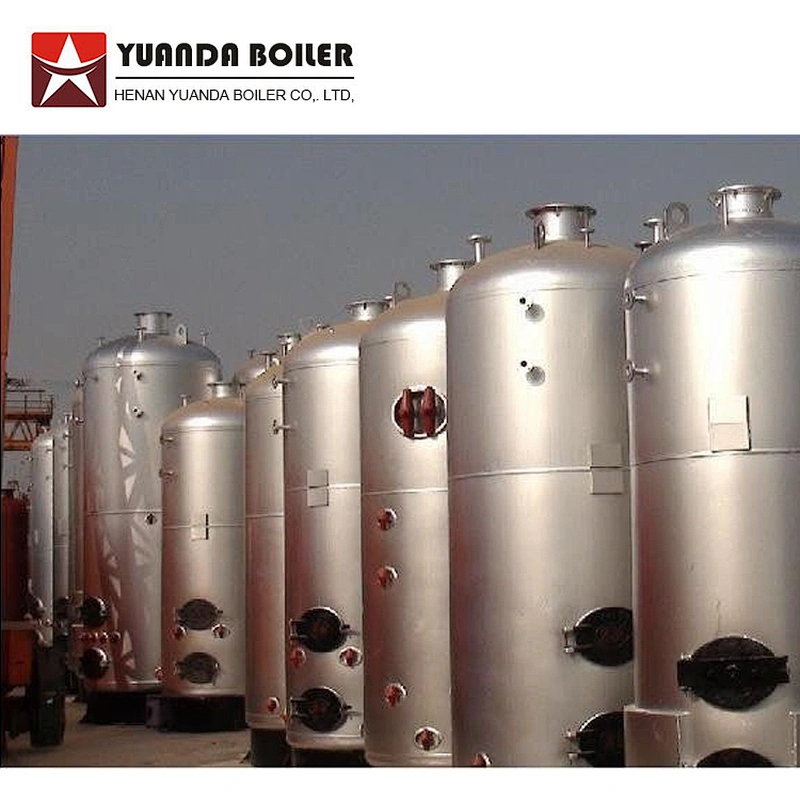

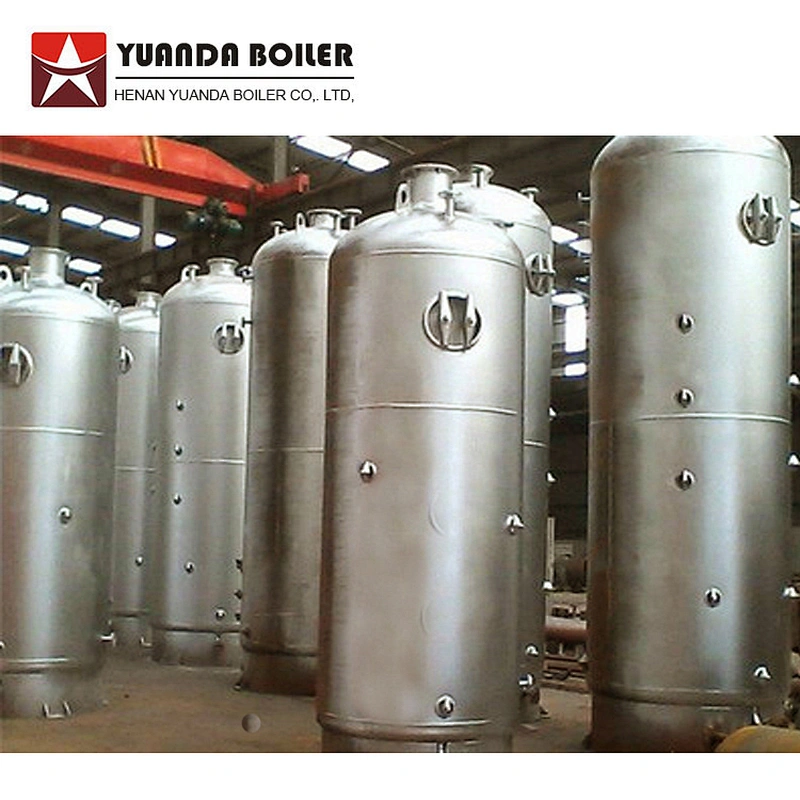

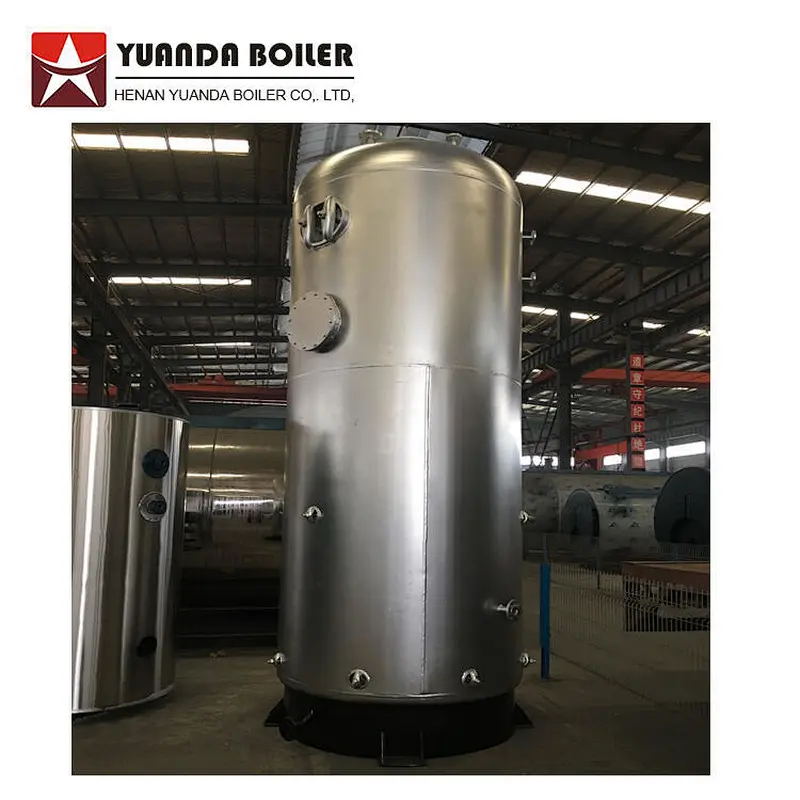

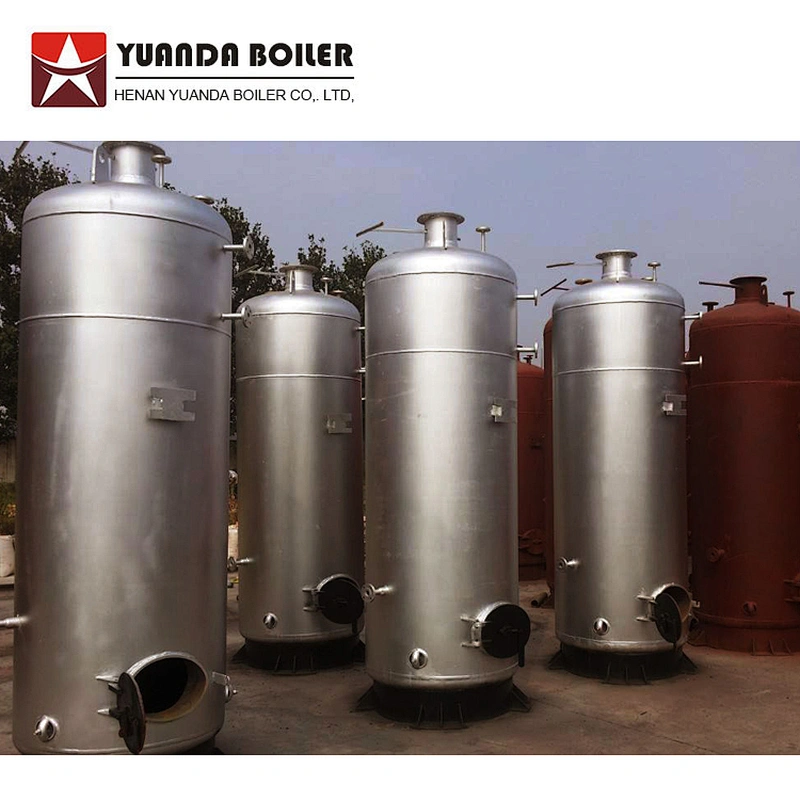

LSG Vertical 100kg 200kg 300kg 500kg 1000kg Coal wood log biomass fired Small steam boiler

LSG Vertical 100kg 200kg 300kg 500kg 1000kg Coal wood log biomass fired Small steam boiler

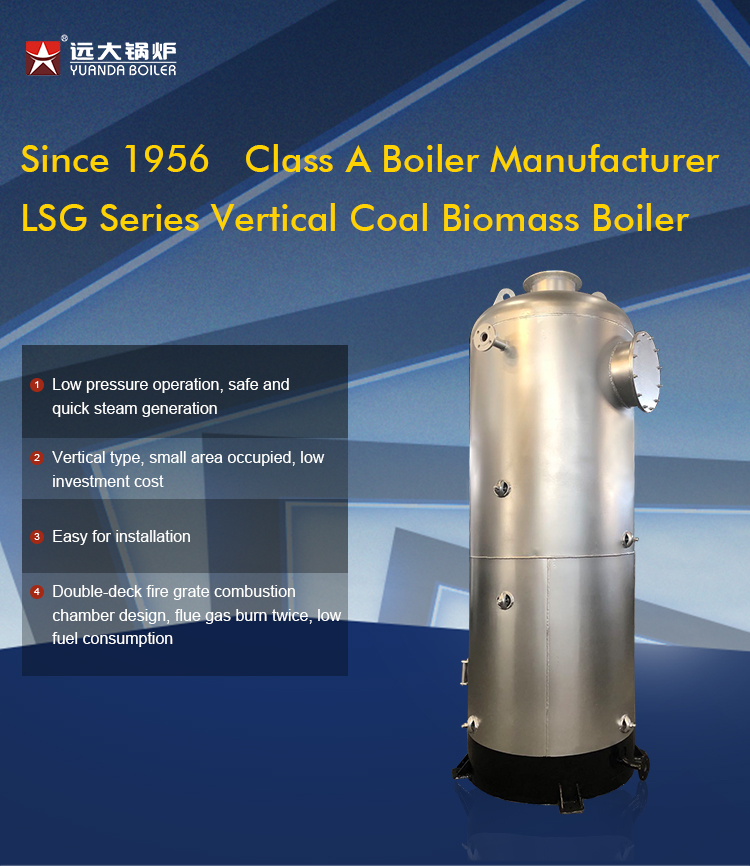

Model NO.: LSG vertical steam boiler

Quantity:

Product Description

Rated capacity:1ton to 6 ton/h;

Rated pressure:0.1Mpa-3.8Mpa;

Applicable fuel:wood,firewood, wood logs,coal,solid fuel.etc

Boiler Model	LSG0.1	LSG0.2	LSG0.3	LSG0.5	LSG0.7	LSG1
Rated steam capacity(t/h)	0.1	0.2	0.3	0.5	0.7	1
Rated steam pressure(Mpa)	0.4	0.4	0.4	0.4/0.7	0.4/0.7	0.4/0.7
Rated steam temperature(℃)	151	151	151	151(170)	151	151
Heating area(m2)	4.3	7.8	12.5	20	28.3	40
Main part weight(kg)	900	1200	1680	1950	2300	2680
Size(mm)	0.8*2.6	0.9*3.0	1.0*3.5	1.2*3.8	1.4*4.2	1.6*4.9

Pre-sale service:

1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry.

2.Provide drawings for building your boiler roon,such as foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.

After-sale service:

1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
