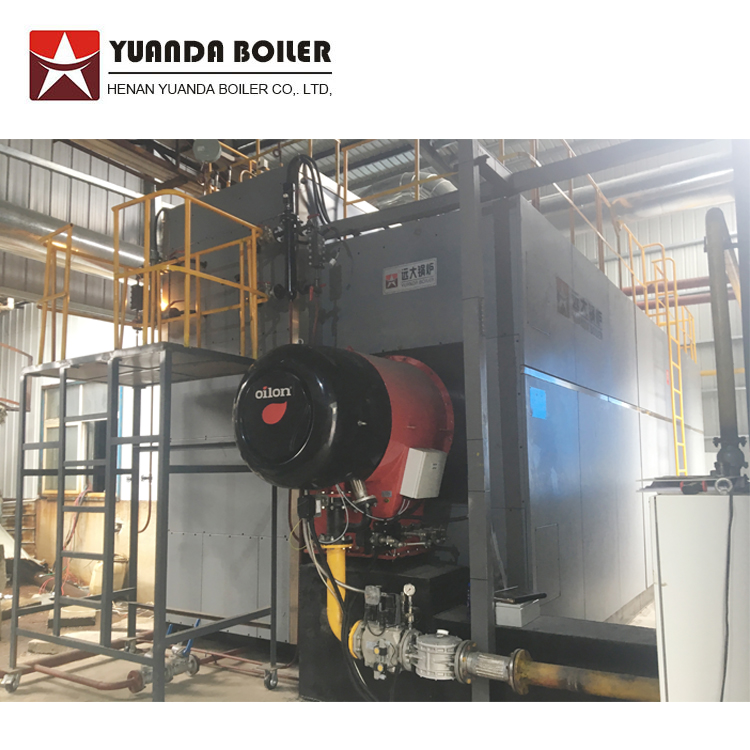

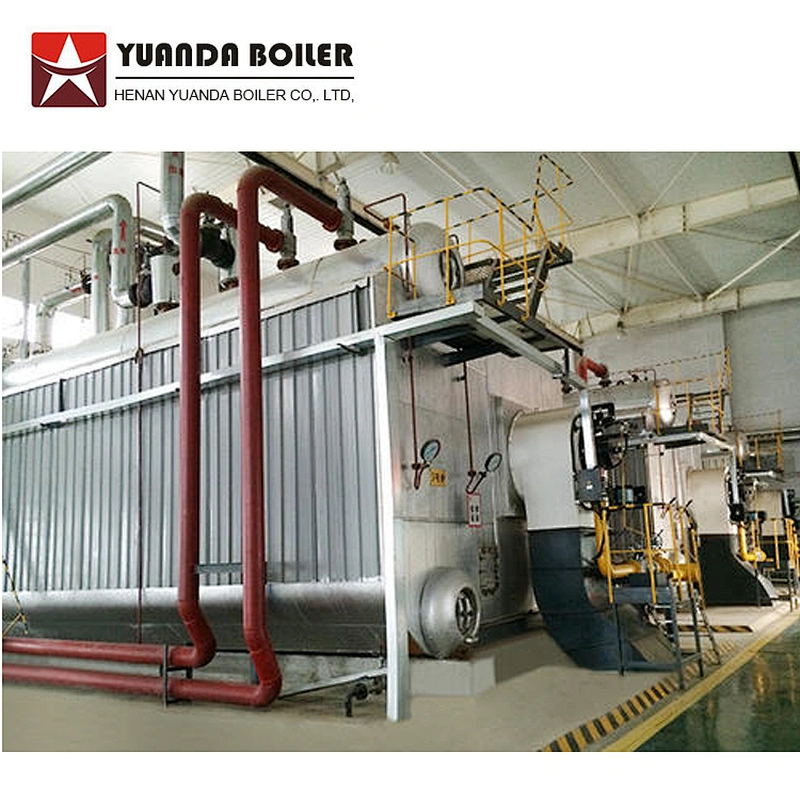

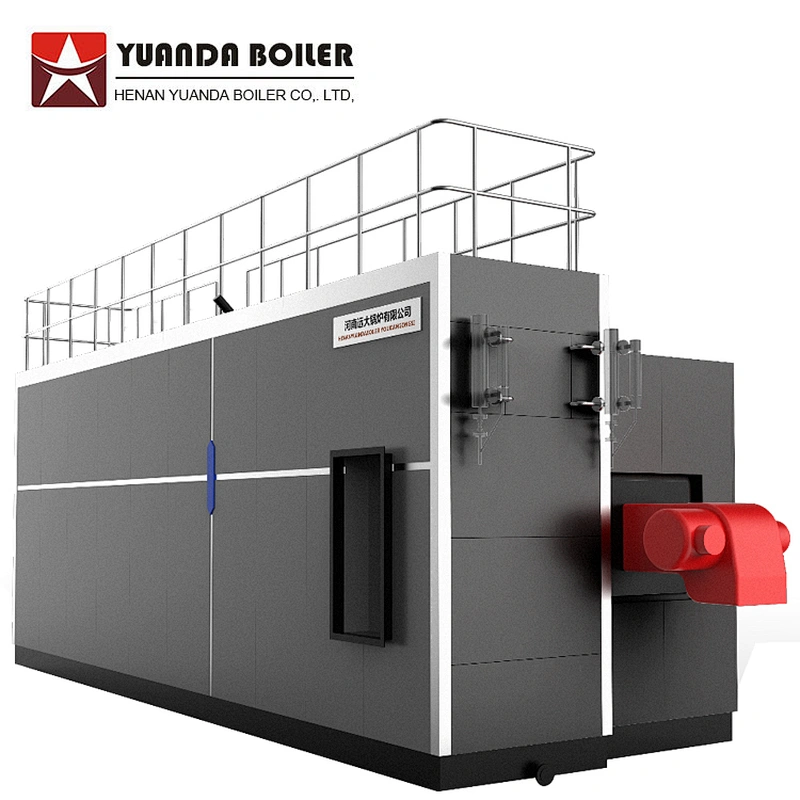

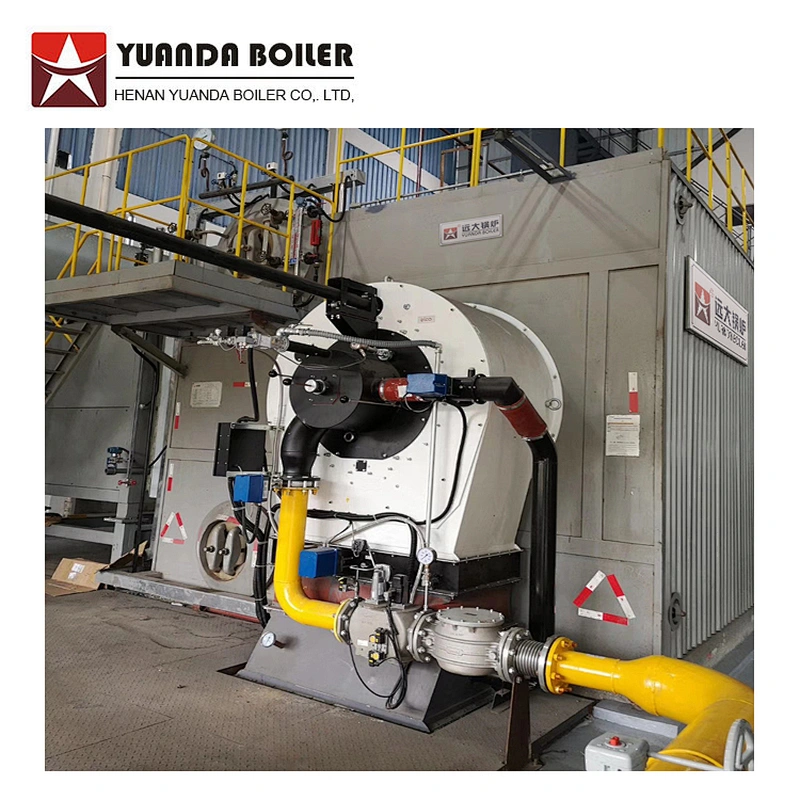

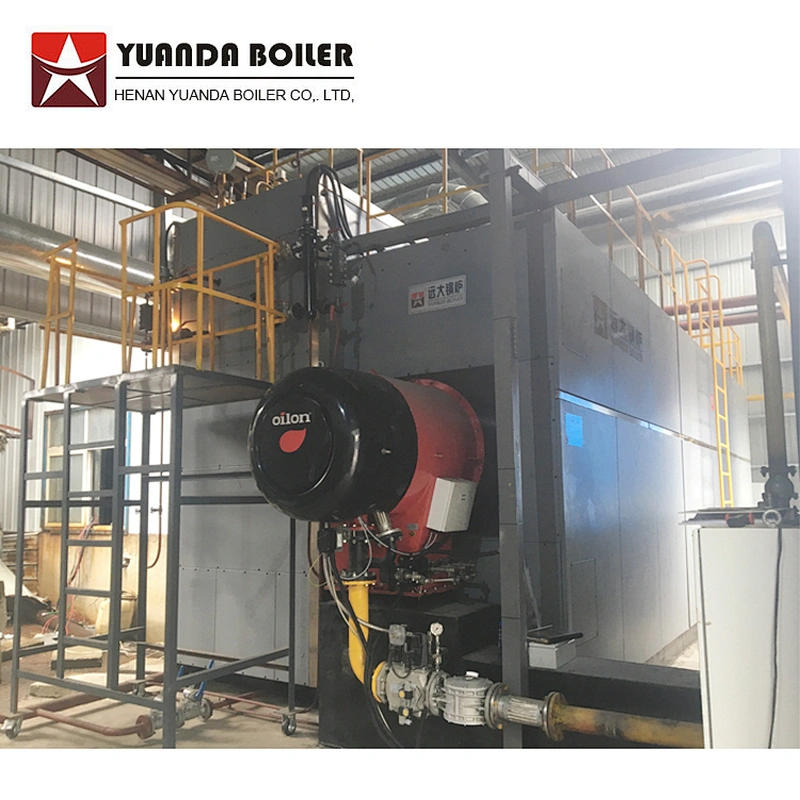

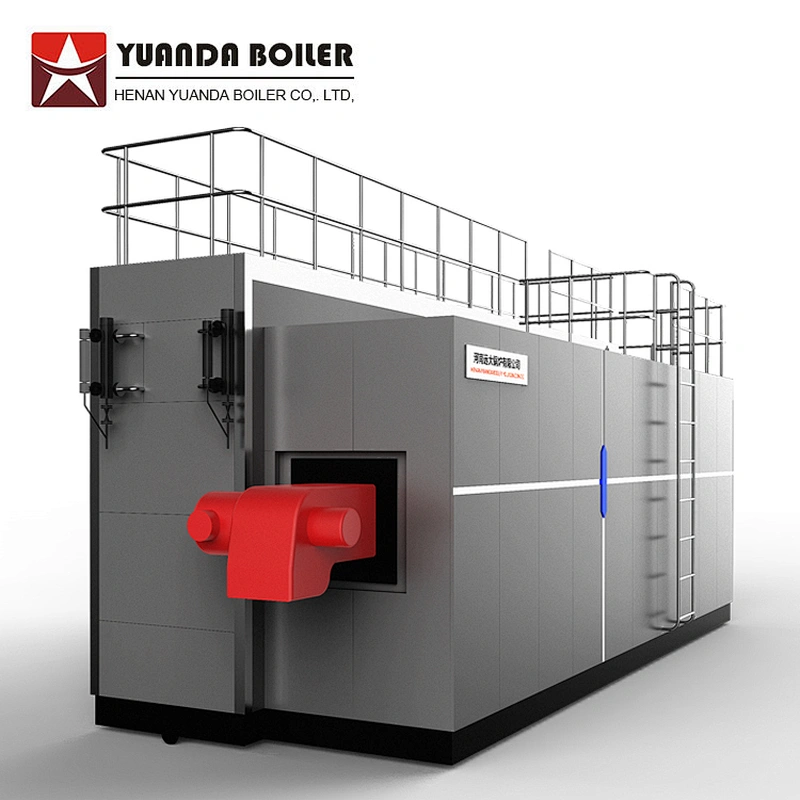

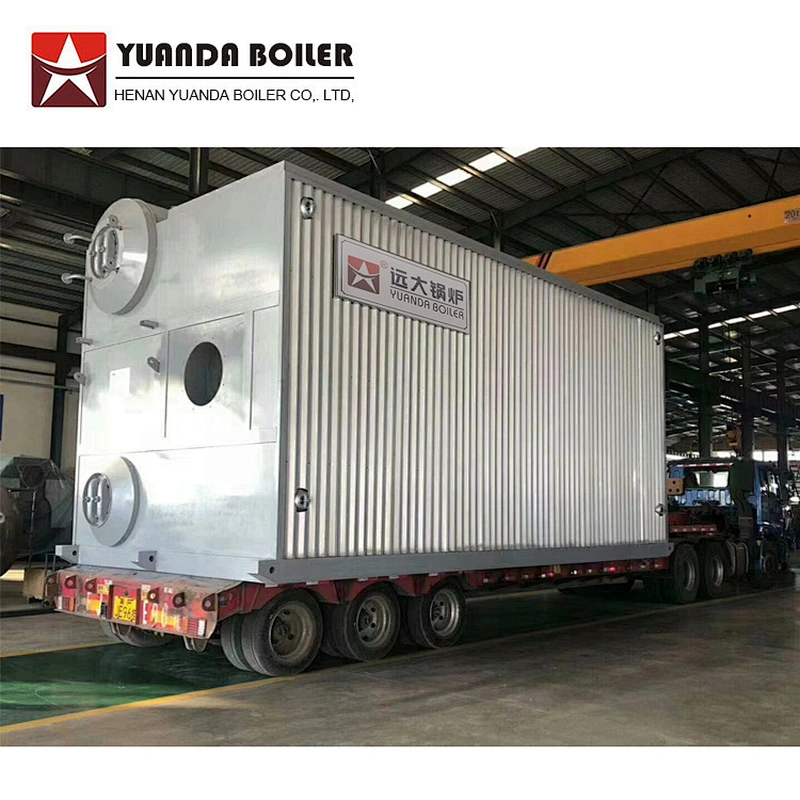

industrial water tube 20 30 ton gas oil fired steam boiler

industrial water tube 20 30 ton gas oil fired steam boiler

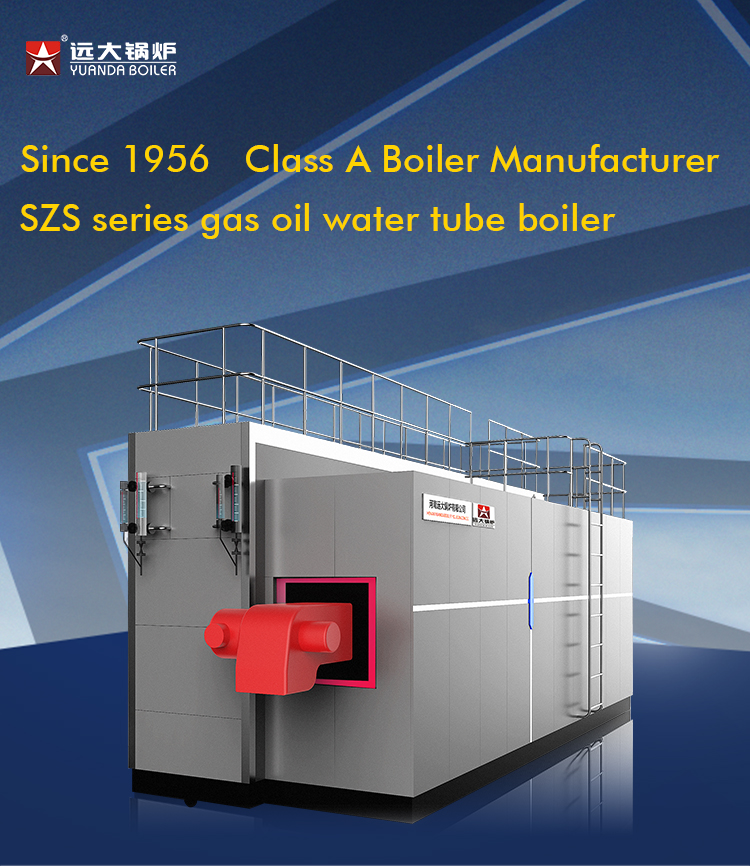

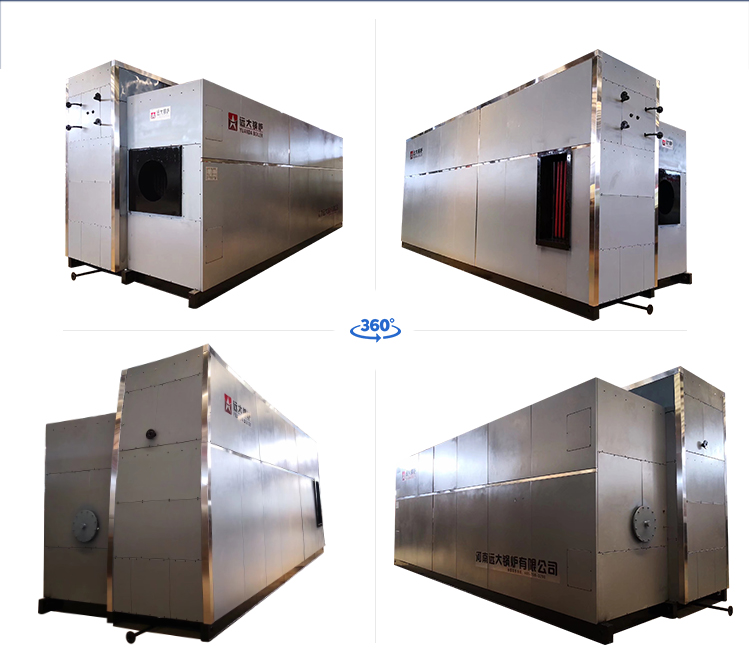

Model NO.: SZS water tube steam boiler

Quantity:

Product Description

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Fuel comsumption		max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	light diesel oil(kg/h)	natural gas(Nm³/h)	max transportation weigh(t)
SZS10-1.25/1.6/2.5/3.82-YQ	10	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	618	660	36
SZS15-1.25/1.6/2.5/3.82-YQ	15	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	927	987	45
SZS20-1.25/1.6/2.5/3.82-YQ	20	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1256	1316	52.6
SZS25-1.25/1.6/2.5/3.82-YQ	25	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1545	1660	55.3
SZS30-1.25/1.6/2.5/3.82-YQ	30	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1856	1981	63.7
SZS40-1.25/1.6/2.5/3.82-YQ	40	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	2470	2630	77.4
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Pre-sale service:

1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry.

2.Provide drawings for building your boiler roon,such as foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.

After-sale service:

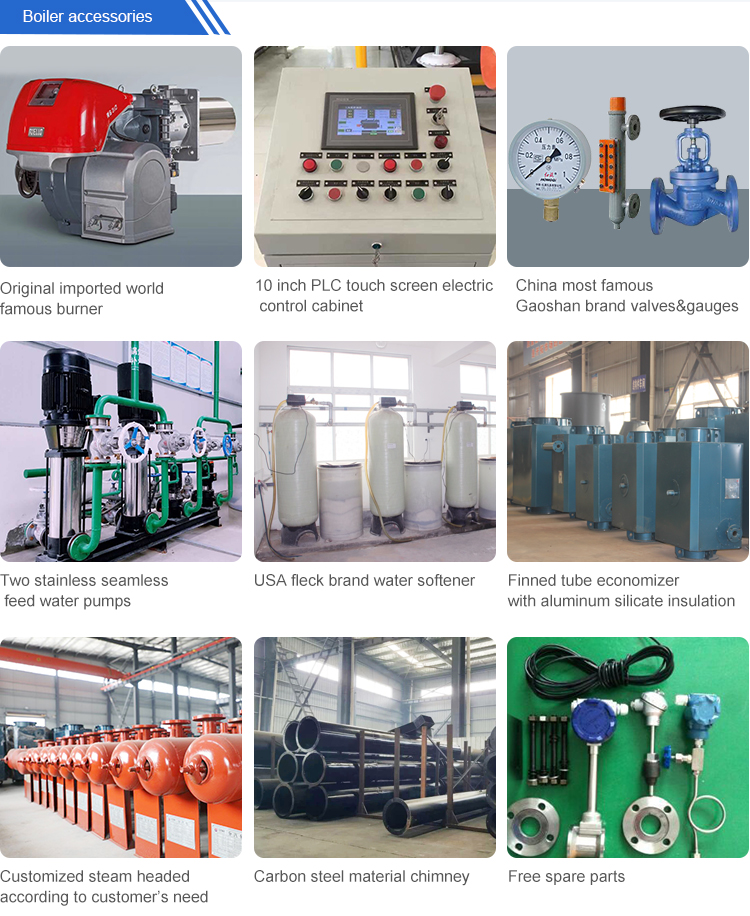

1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
