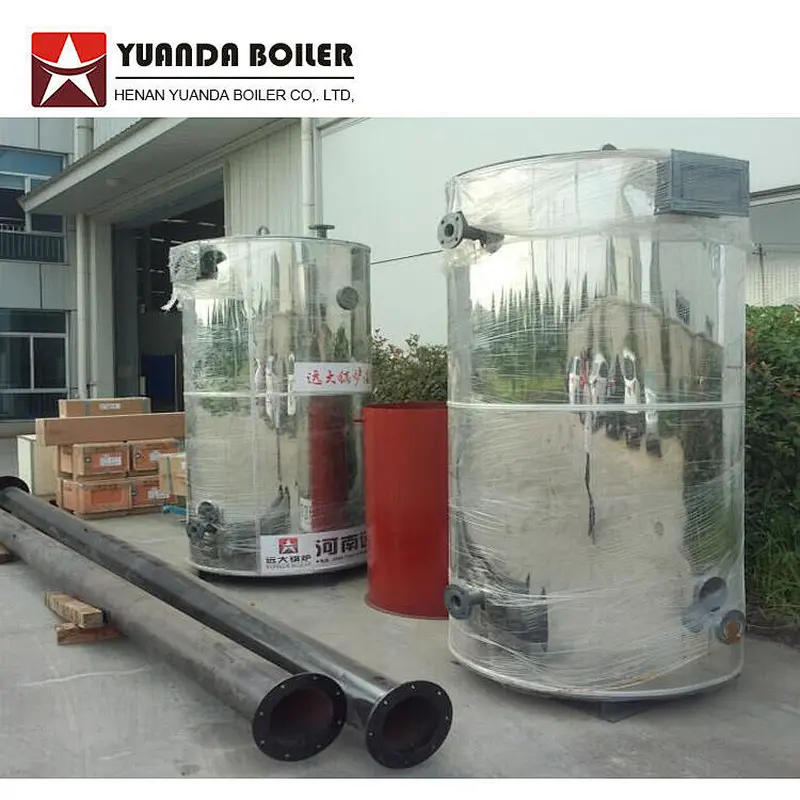

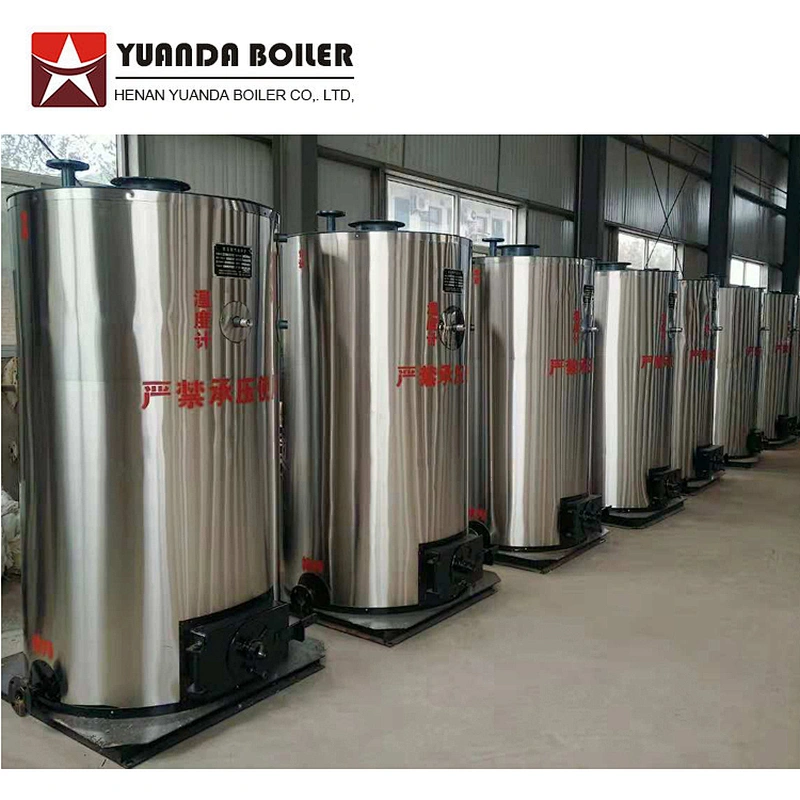

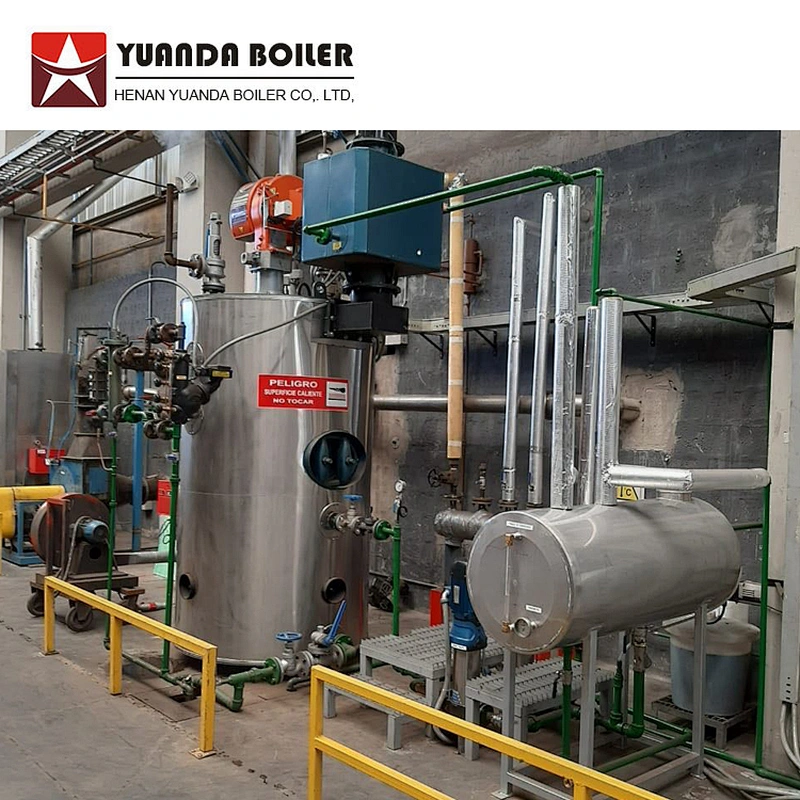

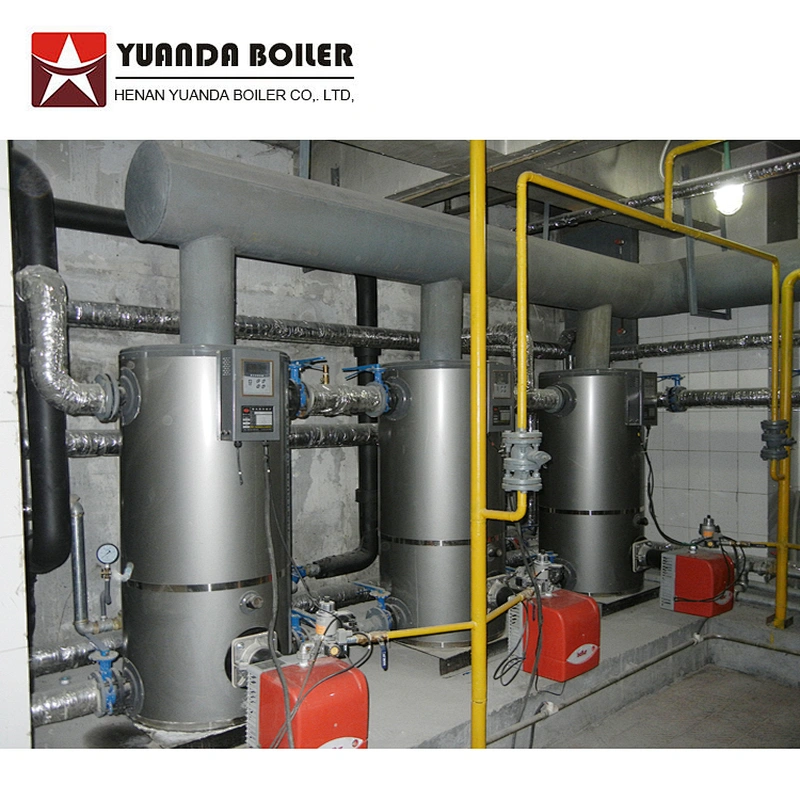

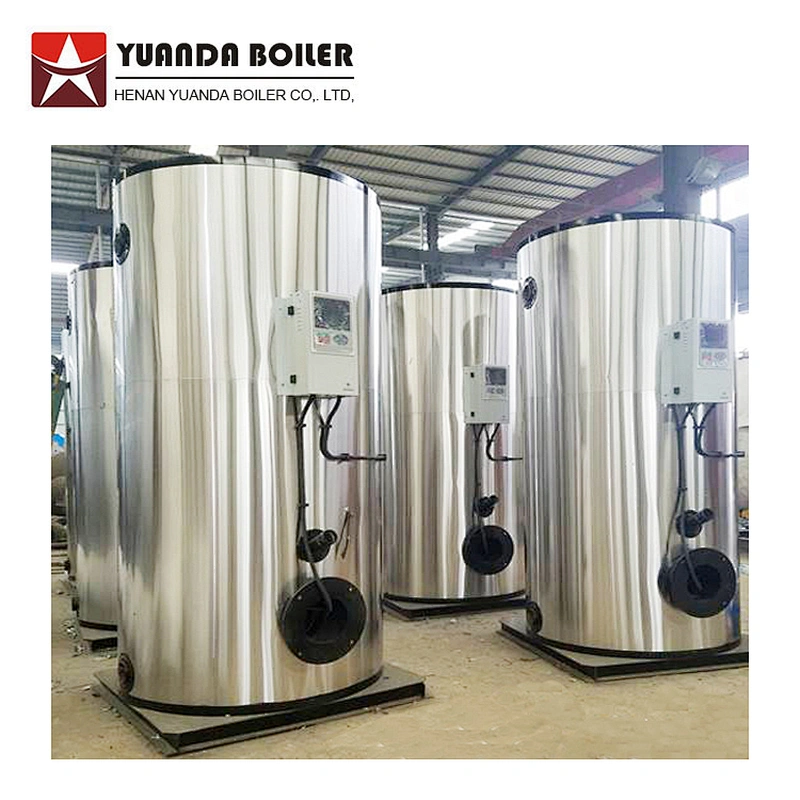

LHS Vertical small 0.1 to 1 ton natural gas lpg diesel oil fired steam boiler

LHS Vertical small 0.1 to 1 ton natural gas lpg diesel oil fired steam boiler

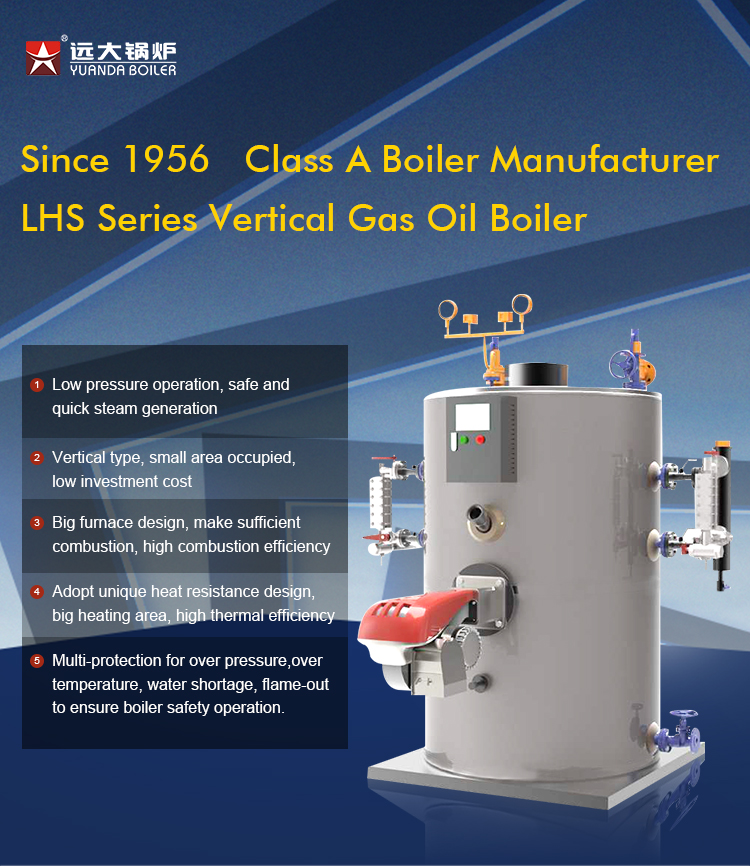

Model NO.: LHS vertical steam boiler

Quantity:

Product Description

Rated capacity:0.1 ton to 1ton

Rated pressure:0.1Mpa to 1Mpa(1bar to 10bar)

Applicable fuel:natural gas, diesel, lpg,etc

Boiler Model			LHS0.1	LHS0.2	LHS0.3	LHS0.5	LHS0.7	LHS1
Rated steam capacity(t/h)			0.1	0.2	0.3	0.5	0.7	1
Rated steam pressure(Mpa)			0.4	0.4	0.4	0.4/0.7	0.4/0.7	0.4/0.7
Rated steam temperature(℃)			151	151	151	151(170)	151	151
Fuel consumption (Nm3/h)	natural gas	8.5	17	25.5	42.5	62	78
		diesel	6.4	12.8	19.2	32	49.5	65
		lpg	3.1	6.2	9.3	15.5	22	28
Weight(kg)			632	850	991	20181657	1739	2561
Size(mm)			1676*φ708	1822*φ838	1956*φ988	2190*φ1158	2420*φ1258	2468*φ1358

Pre-sale service:

1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry.

2.Provide drawings for building your boiler roon,such as foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.

After-sale service:

1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
